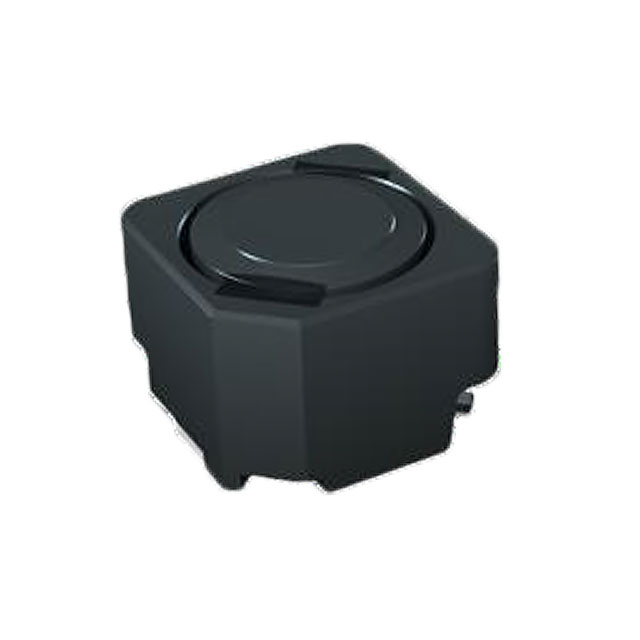

MBH12282C Series

Catalog

FIXED IND

Part	Current Rating (Amps)	Ratings	Inductance	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Inductance Frequency - Test	Material - Core	Shielding	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Tolerance	Package / Case	DC Resistance (DCR)
Murata Power Solutions Inc. MBH12282C-4R7NA=P3
Murata Power Solutions Inc. MBH12282C-680MA=P3	2.2 A	AEC-Q200	68 µH	99.6 mOhm	0.335 in	8.5 mm	Surface Mount	100 kHz	Ferrite	Shielded	3 A	0.492 in	0.492 "	12.5 mm	12.5 mm	Drum Core Wirewound	20 %	Nonstandard
Murata Power Solutions Inc. MBH12282C-470MA=P3	2.6 A	AEC-Q200	47 µH	79.2 mOhm	0.335 in	8.5 mm	Surface Mount	100 kHz	Ferrite	Shielded	3.6 A	0.492 in	0.492 "	12.5 mm	12.5 mm	Drum Core Wirewound	20 %	Nonstandard
Murata Power Solutions Inc. MBH12282C-6R8NA=P3	5.7 A	AEC-Q200	6.8 µH		0.335 in	8.5 mm	Surface Mount	100 kHz	Ferrite	Shielded	10 A	0.492 in	0.492 "	12.5 mm	12.5 mm	Drum Core Wirewound	30 %	Nonstandard	18 mOhm
