WZ-2RW Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

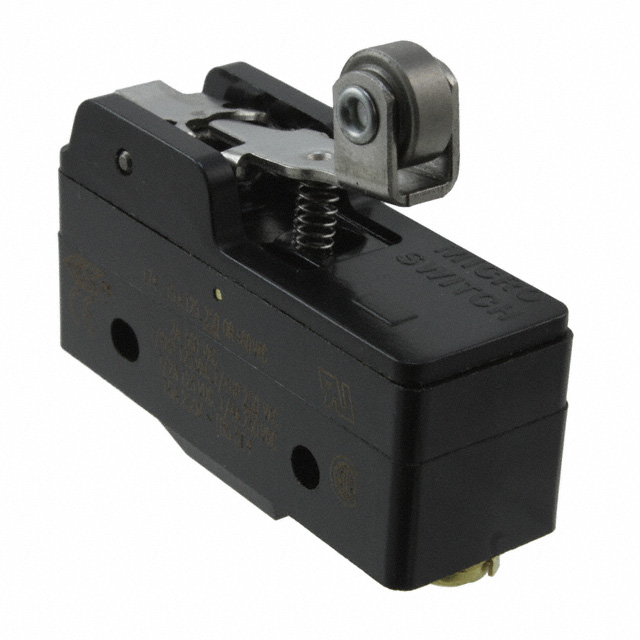

MICROSWITCH, STANDARD, ROLLER LEVER, SPST-NC, SOLDER, 15 A
| Part | Operating Force | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Mechanical Life | Operating Position | Operating Position | Differential Travel | Differential Travel | Actuator Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Overtravel [custom] | Overtravel [custom] | Mounting Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 170 gf | SPST-NC | -55 C | 85 °C | Screw Terminal | 20000000 Cycles | 30.2 mm | 1.188 in | 0.5 mm | 0.02 in | Lever Roller | 15 A 500 mA | 125 V | 125 VDC | 2.4 mm | 0.094 " | Chassis Mount | On-Mom |
