6210 Series
Manufacturer: KYOCERA AVX
Beta
⌘K

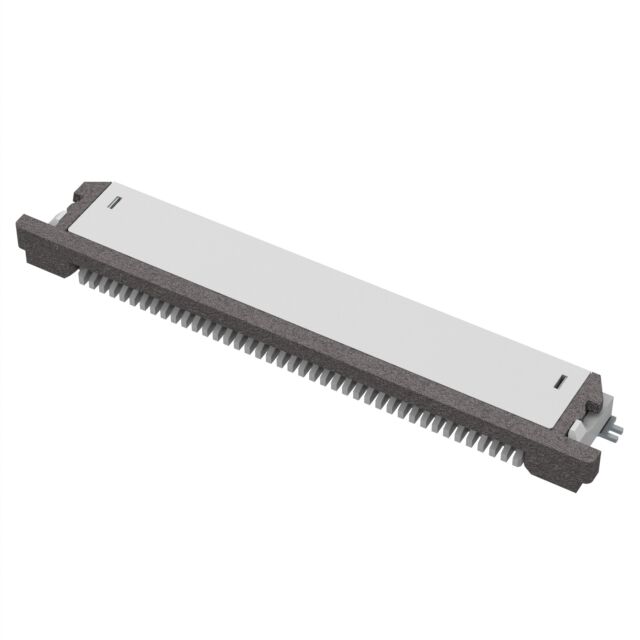

FFC & FPC CONNECTORS 40P RA SMD BOTTOM W/ SLIDE LOCK
| Part | Current Rating (Amps) | Voltage Rating | Cable End Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Housing Material | Features | Locking Feature | Pitch | Pitch | Contact Finish | Connector/Contact Type | Flat Flex Type | FFC, FCB Thickness | Height Above Board | Height Above Board | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 400 mA | 50 V | Tapered | Solder | 85 °C | -40 C | Copper Alloy | Thermoplastic | Solder Retention Zero Insertion Force (ZIF) | Slide Lock | 0.02 " | 0.5 mm | Tin Copper | Contacts Bottom | FFC FPC | 0.3 mm | 2 mm | 0.079 in | Right Angle Surface Mount | 40 |
