DG13 Series

Catalog

SWITCH SNAP ACTION SPDT 3A 125V

Part	Overtravel [custom]	Overtravel [custom]	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Electrical Life	Voltage Rating - AC	Actuator Type	Switch Function	Voltage Rating - DC	Operating Position	Operating Position	Pretravel	Pretravel	Mounting Type	Current Rating (Amps)	Circuit	Differential Travel	Differential Travel	Ingress Protection	Operating Force

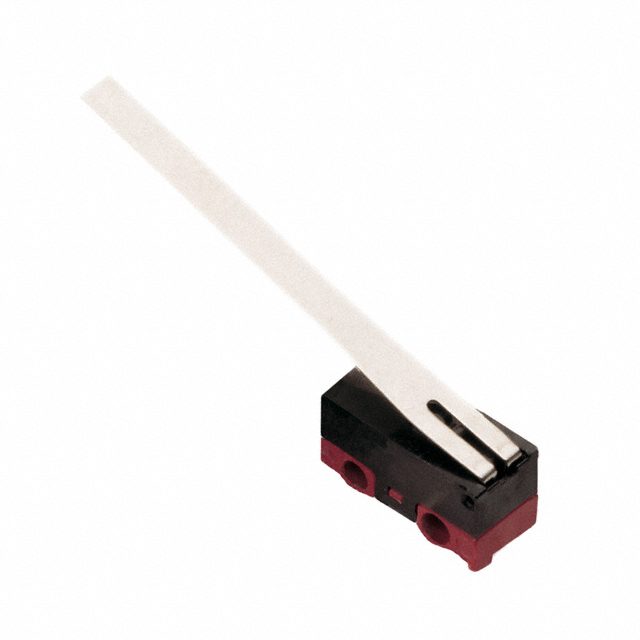

ZF Electronics DG13-B2LA	0.022 "	0.55 mm	1000000 Cycles	85 °C	-25 °C	PC Pin	10000 Cycles	125 V	Lever Straight	On-Mom	30 V	0.268 in	6.8 mm	0.071 "	1.8 mm	Right Angle Through Hole	2 A 3 A	SPDT	0.5 mm	0.02 in	IP40

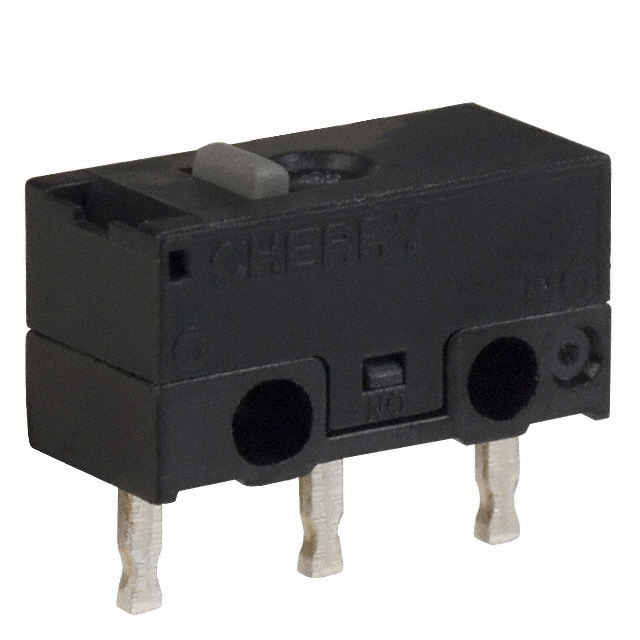

ZF Electronics DG13-B1AA	0.008 in	0.2 mm	1000000 Cycles	85 °C	-25 °C	PC Pin	10000 Cycles	125 V	Round (Pin Plunger)	On-Mom	30 V	0.213 in	5.4 mm	0.02 in	0.5 mm	Through Hole	2 A 3 A	SPDT	0.1 mm	0.004 in	IP40	140 gf

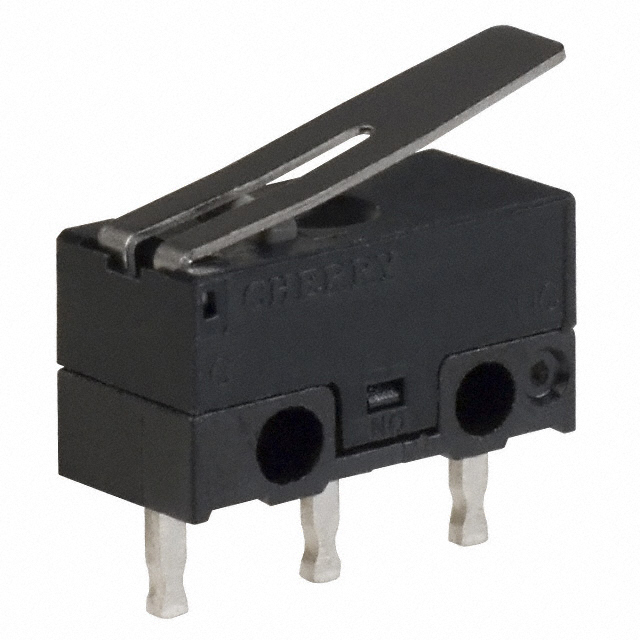

ZF Electronics DG13-B1LA	0.022 "	0.55 mm	1000000 Cycles	85 °C	-25 °C	PC Pin	10000 Cycles	125 V	Lever Straight	On-Mom	30 V	0.268 in	6.8 mm	0.071 "	1.8 mm	Through Hole	2 A 3 A	SPDT	0.5 mm	0.02 in	IP40

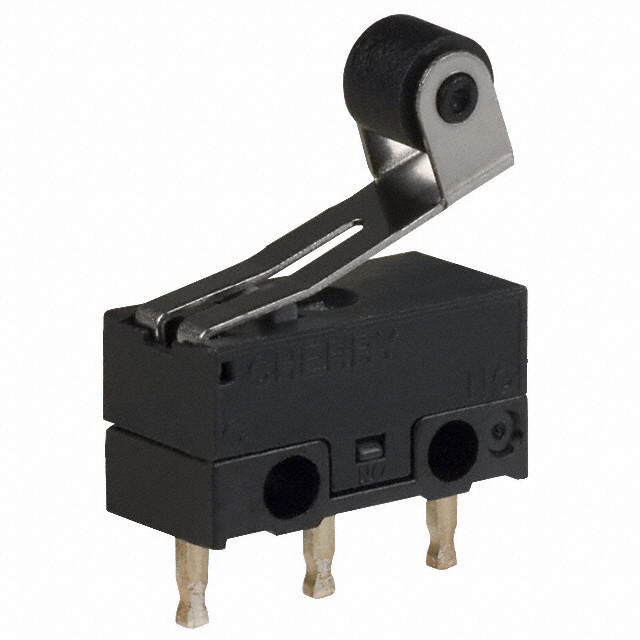

ZF Electronics DG13-B1RA	0.022 "	0.55 mm	1000000 Cycles	85 °C	-25 °C	PC Pin	10000 Cycles	125 V	Lever Roller	On-Mom	30 V	0.488 in	12.4 mm	0.06 in	1.5 mm	Through Hole	2 A 3 A	SPDT	0.5 mm	0.02 in	IP40	60 gf
