1SP0335 Series

Catalog

IC GATE DRVR HI/LOW SIDE MODULE

Part	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Driven Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	High Side Voltage - Max (Bootstrap) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Gate Type	Mounting Type	Number of Drivers	Channel Type	Package / Case
POWER INTEGRATIONS 1SP0335V2M1-MBN750H65E2	Module	9 ns	30 ns	85 °C	-40 C	High-Side or Low-Side	35 A	35 A	6500 V	26.5 V	23.5 V	IGBT	Chassis Mount	1	Single	Module
POWER INTEGRATIONS 1SP0335V2M1-45	Module	9 ns	30 ns	85 C	-40 ¯C	High-Side or Low-Side	35 A	35 A	4500 V	26.5 V	23.5 V	IGBT	Surface Mount	1	Single	Module

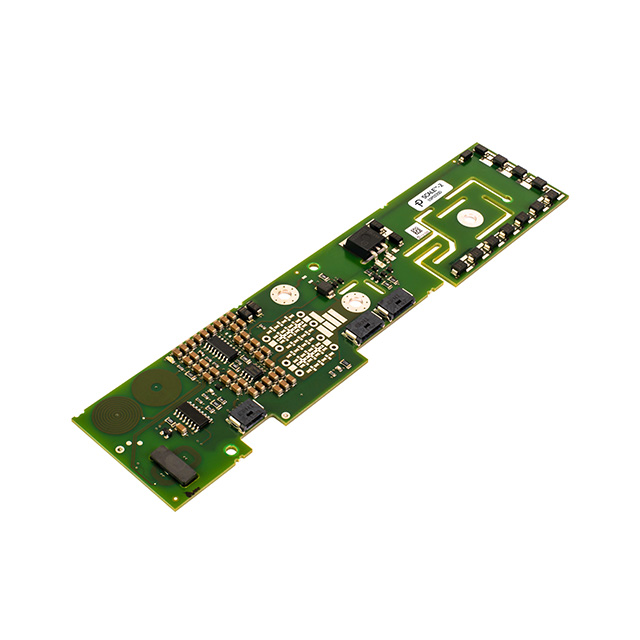

POWER INTEGRATIONS 1SP0335D2S1-45	Module	9 ns	30 ns	85 C	-40 ¯C	High-Side or Low-Side	35 A	35 A	4500 V	26.5 V	23.5 V	IGBT	Surface Mount	1	Single	Module

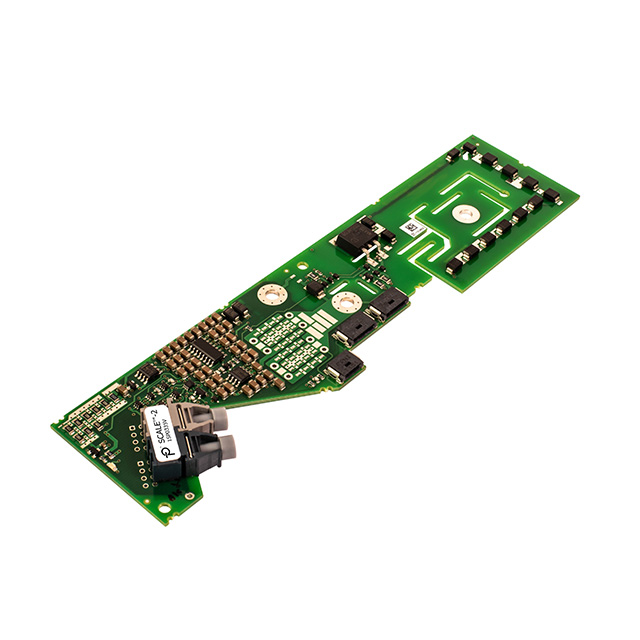

POWER INTEGRATIONS 1SP0335V2M1-33	Module	9 ns	30 ns	85 C	-40 ¯C	High-Side or Low-Side	35 A	35 A	3300 V	26.5 V	23.5 V	IGBT	Surface Mount	1	Single	Module
POWER INTEGRATIONS 1SP0335V2M1C-FZ600R65KF2	Module	9 ns	30 ns	85 °C	-40 C	High-Side or Low-Side	35 A	35 A	6500 V	26.5 V	23.5 V	IGBT	Chassis Mount	1	Single	Module
POWER INTEGRATIONS 1SP0335V2M1C-CM900HG-90H	Module	9 ns	30 ns	85 °C	-40 C	High-Side or Low-Side	35 A	35 A	4500 V	26.5 V	23.5 V	IGBT	Chassis Mount	1	Single	Module
POWER INTEGRATIONS 1SP0335V2M1-CM600HG-130H	Module	9 ns	30 ns	85 °C	-40 C	High-Side or Low-Side	35 A	35 A	6500 V	26.5 V	23.5 V	IGBT	Chassis Mount	1	Single	Module
