MF30060V1 Series
Manufacturer: Sunon Fans
Beta
⌘K

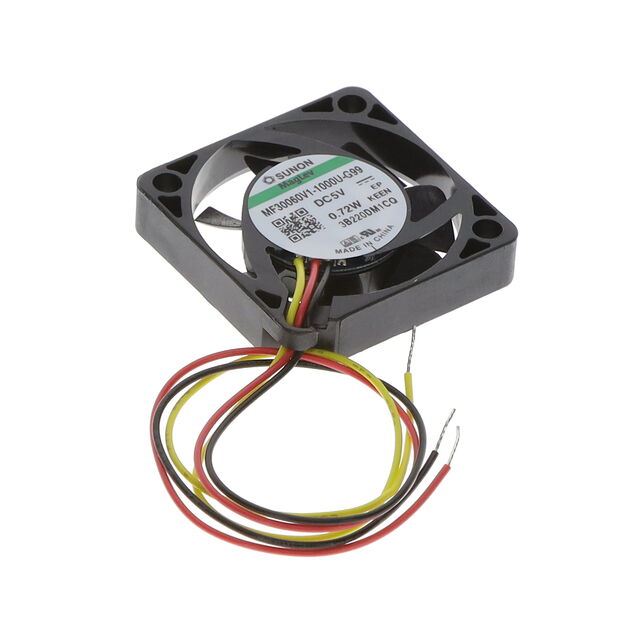

FAN AXIAL 30X6.5MM 5VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Features | Air Flow | Air Flow | Voltage - Rated | Noise | Power (Watts) | Termination | Static Pressure | Static Pressure | Size / Dimension [x] | Size / Dimension [z] | Width [x] | Approval Agency | Bearing Type | RPM | Fan Type | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | 2.5 V | 6 VDC | 70000 Hrs | Polybutylene Terephthalate (PBT) | 112 mA | 70 °C | -10 °C | Auto Restart Speed Sensor (Tach) | 4.9 CFM | 0.137 m³/min | 5 V | 23.6 dB(A) | 560 mW | 3 Wire Leads | 42.3 Pa | 0.17 in H2O | 30 mm | 30 mm | 6.5 mm | cURus TUV | Vapo-Bearing™ | 9100 RPM | Tubeaxial | 15.88 g | 0.035 lb |
