2380 Series

Catalog

CONN HEADER VERT 80POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Fastening Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Post	Style	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Color	Contact Material	Pitch - Mating	Pitch - Mating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Overall Contact Length [x]	Overall Contact Length [x]	Material Flammability Rating	Contact Shape	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Shelf Life Start	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Width [x]	Width [x]	Backing, Carrier	Length	Length	Length	Temperature Range	Temperature Range	Adhesive	Tape Type	Color	Thickness	Thickness	Thickness	Usage	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]
3M Electronic Specialty 2380-6281-TG	2.54 µm	100 µin	2	Push-Pull	Through Hole	-55 C	105 ░C	8.08 mm	0.318 in	0.25 µm	10 µin	Kinked Pin Solder	80	0.1 in	2.54 mm	Tin-Lead	Board to Board Cable	3.05 mm	0.12 in	All	Black	Copper Alloy	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	Unshrouded	13.67 mm	0.538 in	UL94 V-0	Square	Header	Gold	3 A

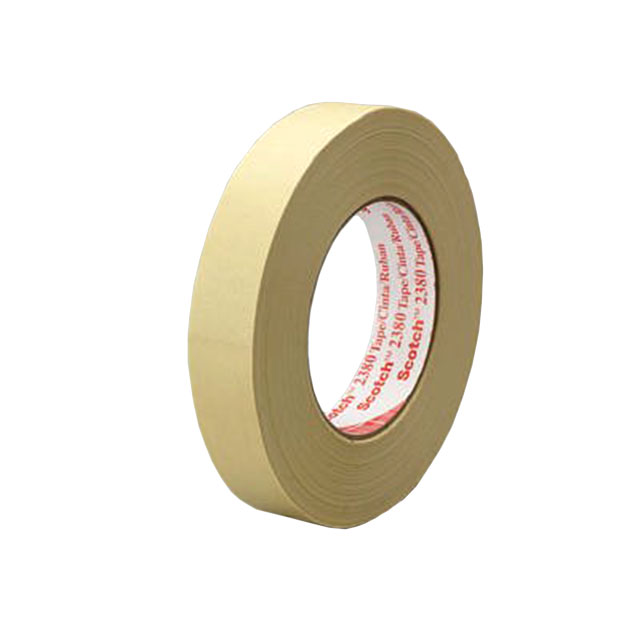

3M Electronic Specialty 2380-6MMX55M																																				Date of Manufacture	70 °F	21 °C	12 Months	0.24 in	6.1 mm	Crepe Paper	60 yds	55 m	180 ft	163 °C	325 °F	Rubber	Masking	Tan	0.191 mm	0.0075 in	7.5 mils	Paint Masking
3M Electronic Specialty 2380-5121TG	2.54 µm	100 µin	2	Push-Pull	Right Angle Through Hole	-55 C	105 ░C	5.84 mm	0.23 in	0.25 µm	10 µin	Solder	80			Tin-Lead	Board to Board Cable	2.79 mm		All	Black	Copper Alloy	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	Unshrouded			UL94 V-0	Square	Header	Gold	3 A																				0.11 in	6.14 mm	0.242 in
3M Electronic Specialty 2380-6221-TG	2.54 µm	100 µin	2	Push-Pull	Through Hole	-55 C	105 ░C	8.08 mm	0.318 in	0.25 µm	10 µin	Solder	80	0.1 in	2.54 mm	Tin-Lead	Board to Board Cable	3.05 mm	0.12 in	All	Black	Copper Alloy	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	Unshrouded	13.67 mm	0.538 in	UL94 V-0	Square	Header	Gold	3 A
3M Electronic Specialty 2380-6121TB	2.54 µm	100 µin	2	Push-Pull	Through Hole	-55 C	105 ░C	5.84 mm	0.23 in	0.76 Ám	30 Áin	Solder	80	0.1 in	2.54 mm	Tin-Lead	Board to Board Cable	3.05 mm	0.12 in	All	Black	Copper Alloy	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	Unshrouded	11.43 mm	0.45 in	UL94 V-0	Square	Header	Gold	3 A
3M Electronic Specialty 2380-6121TG	2.54 µm	100 µin	2	Push-Pull	Through Hole	-55 C	105 ░C	5.84 mm	0.23 in	0.25 µm	10 µin	Solder	80	0.1 in	2.54 mm	Tin-Lead	Board to Board Cable	3.05 mm	0.12 in	All	Black	Copper Alloy	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	Unshrouded	11.43 mm	0.45 in	UL94 V-0	Square	Header	Gold	3 A
3M Electronic Specialty 2380-5221TG	2.54 µm	100 µin	2	Push-Pull	Right Angle Through Hole	-55 C	105 ░C	8.08 mm	0.318 in	0.25 µm	10 µin	Solder	80			Tin-Lead	Board to Board Cable	2.79 mm		All	Black	Copper Alloy	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	Unshrouded			UL94 V-0	Square	Header	Gold	3 A																				0.11 in	6.14 mm	0.242 in
