RUMF22 Series

Catalog

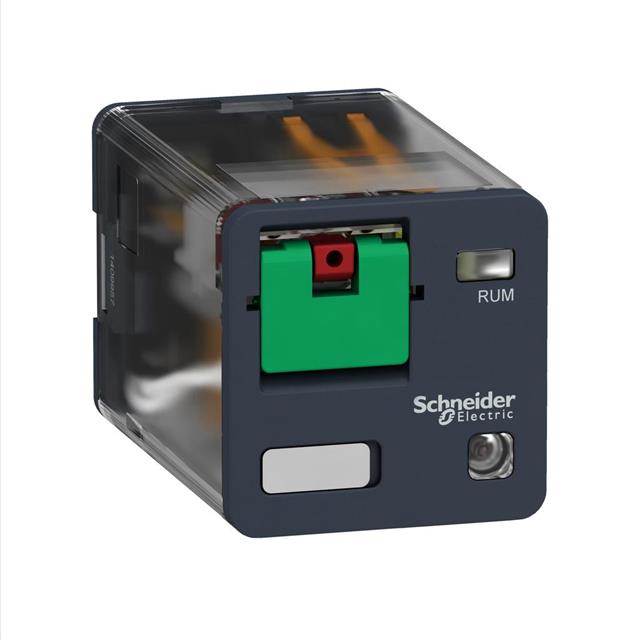

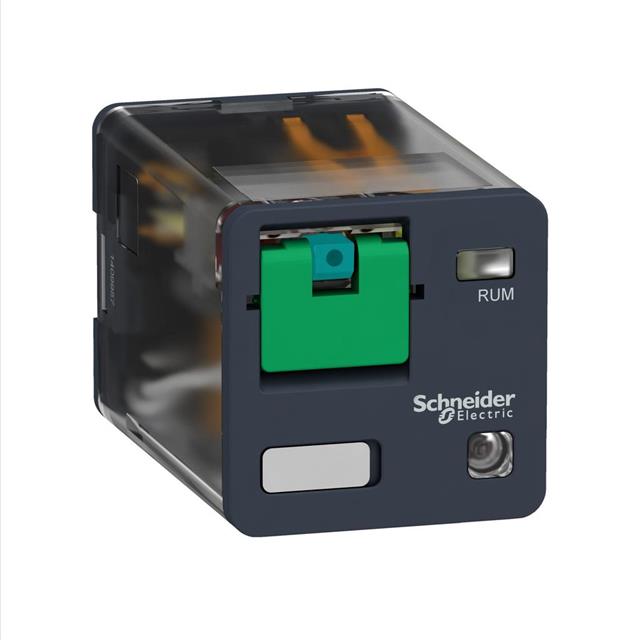

HARMONY, UNIVERSAL PLUG-IN RELAY

Part	Coil Resistance	Must Release Voltage	Contact Form	Contact Material	Release Time	Mounting Type	Relay Type	Coil Current	Termination Style	Operate Time	Must Operate Voltage	Load - Max Switching	Coil Type	Features	Switching Voltage [Max]	Coil Voltage	Contact Rating (Current)	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]
SCHNEIDER ELECTRIC RUMF22P7	6.8 kOhms	34.5 VAC	DPDT (2 Form C)	Silver Nickel (AgNi)	20 ms	Socketable	General Purpose	33.8 mA	Plug In	20 ms	184 VAC	280 W 2500 VA	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC	230 VAC	10 A	CSA EAC UL	55 °C	-40 C
SCHNEIDER ELECTRIC RUMF22B7	72 Ohms	3.6 VAC	DPDT (2 Form C)	Silver Nickel (AgNi)	20 ms	Socketable	General Purpose	333.3 mA	Plug In	20 ms	19.2 VAC	280 W 2500 VA	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC	24 VAC	10 A	CSA EAC UL	55 °C	-40 C
SCHNEIDER ELECTRIC RUMF22BD	470 Ohms	2.4 VDC	DPDT (2 Form C)	Silver Nickel (AgNi)	20 ms	Socketable	General Purpose	51.1 mA	Plug In	20 ms	19.2 VDC	280 W 2500 VA	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC	24 VDC	10 A	CSA EAC UL	55 °C	-40 C
SCHNEIDER ELECTRIC RUMF22F7	1.7 kOhms	18 VAC	DPDT (2 Form C)	Silver Nickel (AgNi)	20 ms	Socketable	General Purpose	70.6 mA	Plug In	20 ms	96 VAC	280 W 2500 VA	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC	120 VAC	10 A	CSA EAC UL	55 °C	-40 C
SCHNEIDER ELECTRIC RUMF22JD	120 Ohms	1.2 VDC	DPDT (2 Form C)	Silver Nickel (AgNi)	20 ms	Socketable	General Purpose	0.1 A	Plug In	20 ms	9.6 VDC	280 W 2500 VA	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC	12 VDC	10 A	CSA EAC UL	55 °C	-40 C
