DRV8402 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVAL MODULE FOR DRV8402
| Part | Contents | Type | Function | Supplied Contents | Utilized IC / Part | Secondary Attributes | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Configuration | Interface | Technology | Supplier Device Package | Voltage - Load [Max] | Voltage - Load [Min] | Current - Output | Motor Type - AC, DC | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Applications | Motor Type - Stepper |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | Board(s) | Power Management | Motor Controller/Driver | Board(s) | DRV8402 | Short-Circuit Thermal Undervoltage Protection | |||||||||||||||||

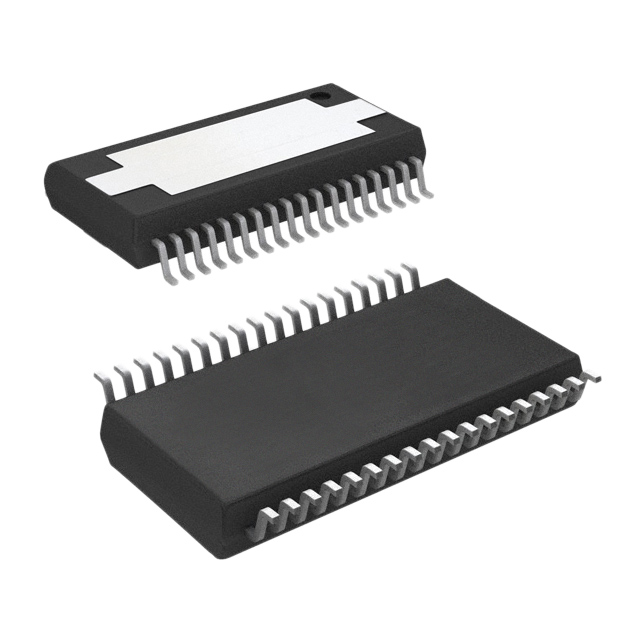

 Texas Instruments | Driver - Fully Integrated Control and Power Stage | 13.2 V | 11.4 V | Half Bridge (4) | Parallel | Power MOSFET | 36-HSSOP | 52.5 V | 0 V | 5 A | Brushed DC Brushless DC (BLDC) | Surface Mount | 150 °C | -40 °C | 0.433 in 11 mm | 36-BSSOP Exposed Pad | General Purpose | Bipolar |
