18980-7S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

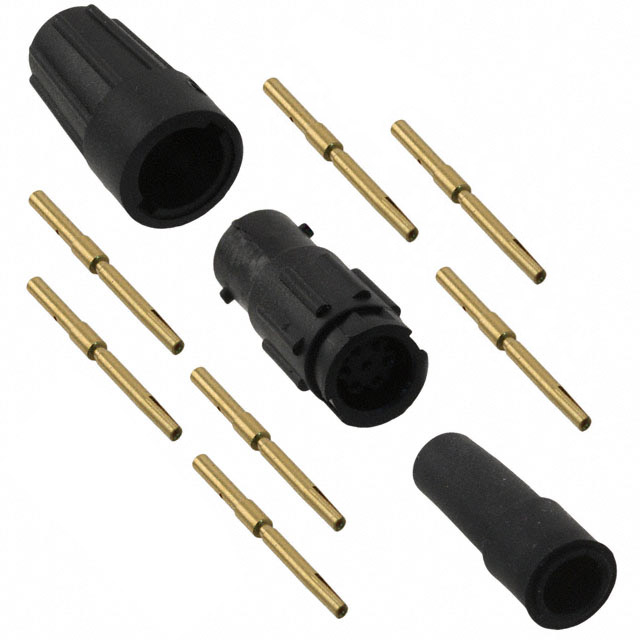

CIRCULAR CONNECTOR, MICRO-CON-X SERIES, CABLE MOUNT PLUG, 7 CONTACTS, CRIMP SOCKET, BAYONET
| Part | Current Rating (Amps) | Connector Type | Mounting Type | Features | Contact Material | Contact Finish - Mating | Color | Applications | Voltage Rating | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Number of Positions | Fastening Type | Material Flammability Rating | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Shielding | Orientation | Termination | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 3.5 A | Receptacle Female Sockets | Free Hanging (In-Line) | Backshell | Copper Alloy | Gold | Black | Data Industrial Instrumentation Medical | 600 VAC | Thermoplastic | 85 °C | -40 C | IP67 - Dust Tight Waterproof | 7 | Bayonet Lock | UL94 HB | 5.59 mm | 5.84 mm | 0.23 in | 0.22 in | Unshielded | B | Crimp | Plastic |
