SZ5-M1 Series
Manufacturer: Seoul Semiconductor Inc.
Beta
⌘K

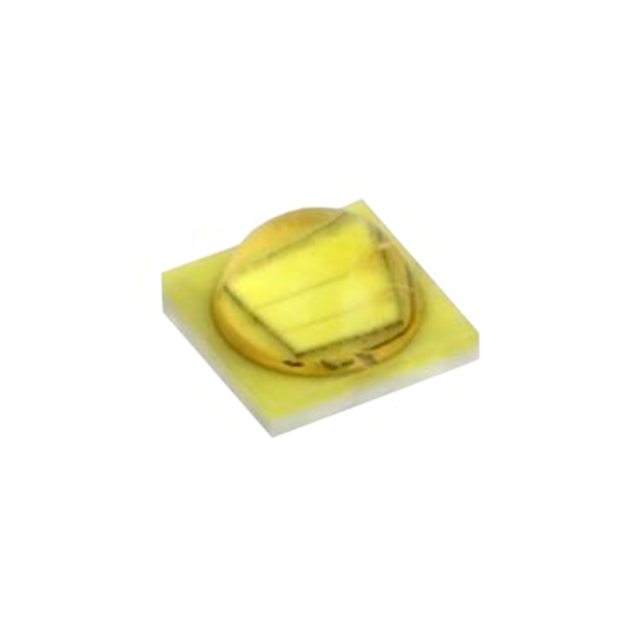

LED Z5-M1 COOL WHITE 5300K 2SMD
| Part | Viewing Angle | CRI (Color Rendering Index) | Current - Test | CCT (K) | Lumens/Watt @ Current - Test | Current - Max [Max] | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Color | Voltage - Forward (Vf) (Typ) | Mounting Type | Flux @ 25°C, Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Seoul Semiconductor Inc. | 118 ° | 70 | 350 mA | 5300 K | 150 lm/W | 1.5 A | 2-SMD | 0.085 in | 2.15 mm | 0.138 in | 0.138 in | 3.5 mm | 3.5 mm | 2-SMD No Lead Exposed Pad | Cool White | 2.95 V | Surface Mount | 155 lm |
 Seoul Semiconductor Inc. | 118 ° | 80 | 350 mA | 3000 K | 126 lm/W | 1.5 A | SMD | 0.085 in | 2.15 mm | 0.138 in | 0.138 in | 3.5 mm | 3.5 mm | 1414 (3535 Metric) | Warm White | 2.95 V | Surface Mount | 130 lm |
