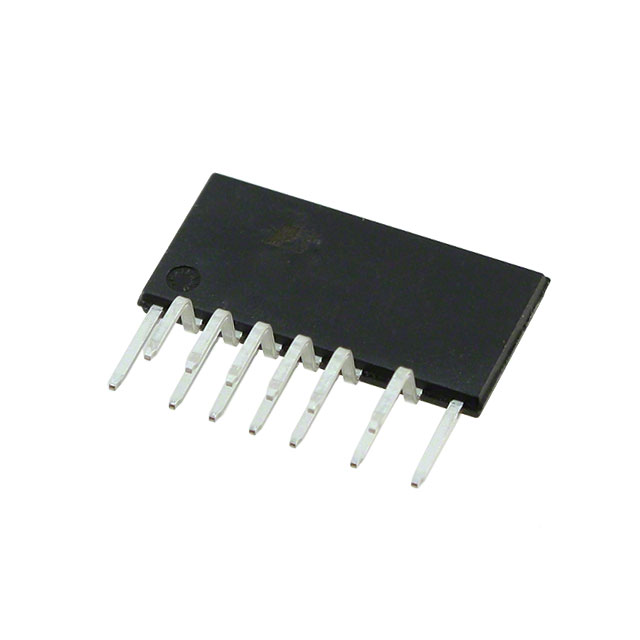

LCS701 Series
Manufacturer: POWER INTEGRATIONS
Beta
⌘K
IC HALF BRIDGE DRIVER ESIP16J
| Part | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Current - Peak Output | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Rds On (Typ) | Technology | Mounting Type | Applications | Interface | Load Type | Features | Fault Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 POWER INTEGRATIONS | 16-SSIP 13 Leads Exposed Pad Formed Leads | 11.4 V | 15 V | 7.7 A | -40 °C | 150 °C | 15 V | 11.4 V | 1 Ohm | Power MOSFET | Through Hole | General Purpose | On/Off | Inductive | Auto Restart Slew Rate Controlled | Current Limiting Over Temperature Over Voltage Short Circuit UVLO |
