EXG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 7POS GOLD SOLDER

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Contact Material	Current Rating (Amps)	Color	Shielding	Shell Size - Insert [custom]	Ingress Protection	Features	Orientation [custom]	Primary Material	Fastening Type	Mounting Type	Material Flammability Rating	Shell Finish	Shell Material	Contact Finish - Mating	Termination	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shell Size - Insert

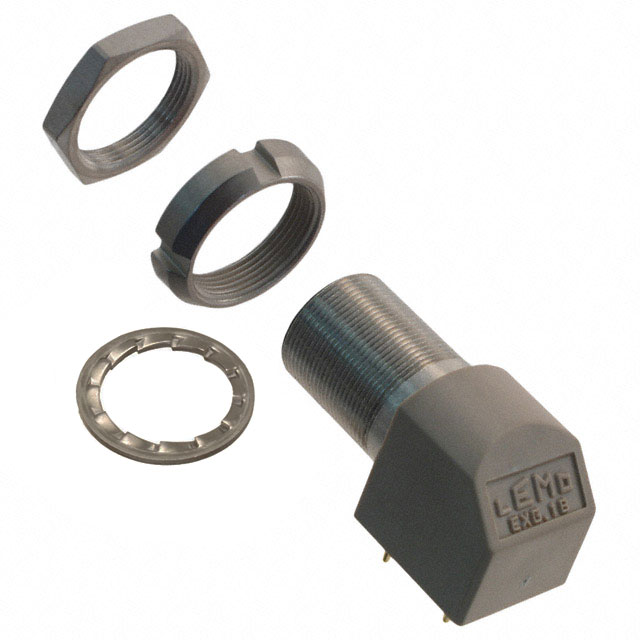

LEMO EXG.1B.307.HLN	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	2 A	Brown Silver	Shielded	307	IP50 - Dust Protected	Ground	G	Metal	Push-Pull	Panel Mount Right Angle Through Hole	UL94 V-0	Nickel	Brass and Polyphenylene Sulfide (PPS)	Gold	Solder	Receptacle Female Sockets	7	-55 C	250 °C	Bulkhead - Front Side Nut
LEMO EXG.1B.308.HLNS	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	2 A	Brown Silver	Shielded		IP50 - Dust Protected	Board Lock	G	Metal	Push-Pull	Panel Mount Right Angle Through Hole	UL94 V-0	Nickel	Brass and Polyphenylene Sulfide (PPS)	Gold	Solder	Receptacle Female Sockets	8	-55 C	250 °C	Bulkhead - Front Side Nut	308

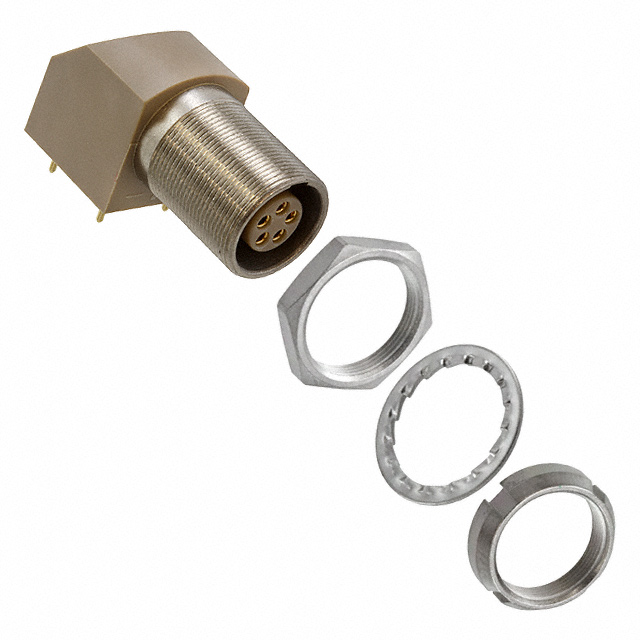

LEMO EXG.1B.305.HLN	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	4.5 A	Brown Silver	Shielded		IP50 - Dust Protected	Ground	G	Metal	Push-Pull	Panel Mount Right Angle Through Hole	UL94 V-0	Nickel	Brass and Polyphenylene Sulfide (PPS)	Gold	Solder	Receptacle Female Sockets	5	-55 C	250 °C	Bulkhead - Front Side Nut	305

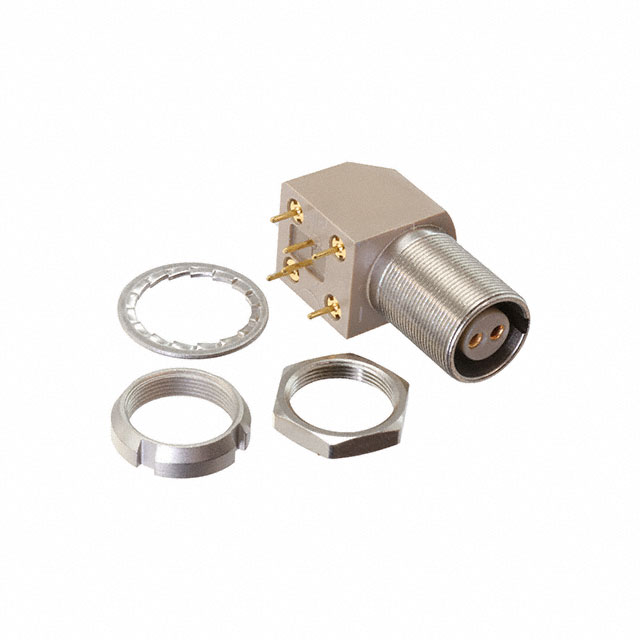

LEMO EXG.1B.302.HLN	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	4.5 A	Brown Silver	Shielded		IP50 - Dust Protected	Ground	G	Metal	Push-Pull	Panel Mount Right Angle Through Hole	UL94 V-0	Nickel	Brass and Polyphenylene Sulfide (PPS)	Gold	Solder	Receptacle Female Sockets	2	-55 C	250 °C	Bulkhead - Front Side Nut	302
LEMO EXG.1B.310.HLN	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	1.5 A	Brown Silver	Shielded		IP50 - Dust Protected	Ground	G	Metal	Push-Pull	Panel Mount Right Angle Through Hole	UL94 V-0	Nickel	Brass and Polyphenylene Sulfide (PPS)	Gold	Solder	Receptacle Female Sockets	10	-55 C	250 °C	Bulkhead - Front Side Nut	310
LEMO EXG.1B.308.LLNY	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Bronze	2 A	Brown Silver	Shielded		IP50 - Dust Protected	Ground	G	Metal	Push-Pull	Panel Mount Right Angle Through Hole	UL94 V-0	Nickel	Brass and Polyphenylene Sulfide (PPS)	Gold	Solder	Receptacle Female Sockets	8	-55 C	250 °C	Bulkhead - Front Side Nut	308
