747461 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

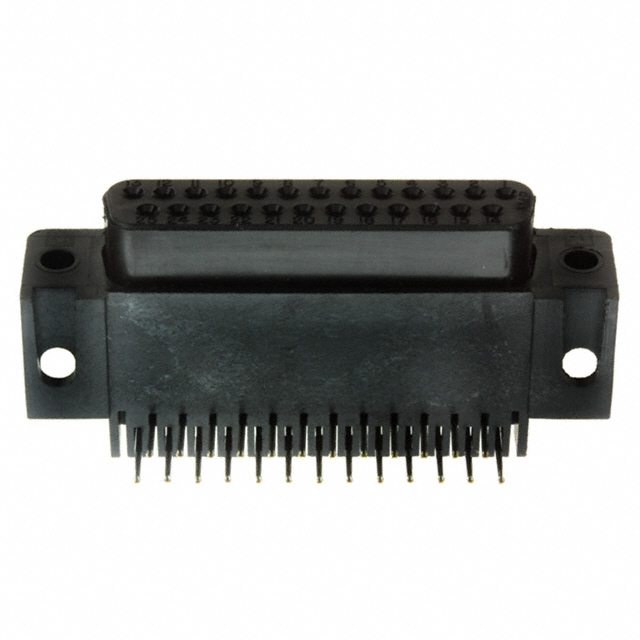

CONN D-SUB RCPT 25POS R/A SOLDER
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Connector Style | Number of Positions | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature | Connector Type | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Number of Rows [custom] | Backset Spacing | Backset Spacing | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | D-Sub | 25 | Solder | 30 Áin | 0.76 Ám | Signal | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | Gold | B DB | 3 | 6 A | UL94 V-0 | Right Angle Through Hole | 2 | 0.59 in | 14.99 mm | |
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | D-Sub | 25 | Solder | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Gold | B DB | 3 | 6 A | UL94 V-0 | Right Angle Through Hole | 2 | 0.59 in | 14.99 mm | Flash |
