FS225R17 Series

Manufacturer: INFINEON

Catalog

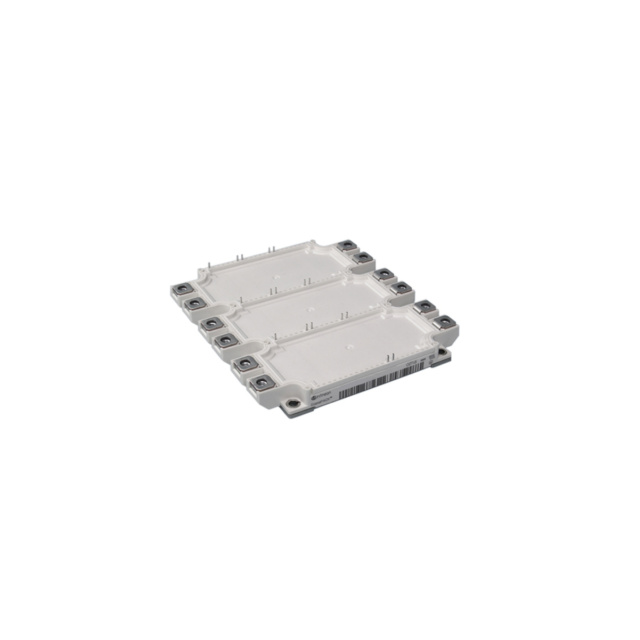

IGBT MODULE MED PWR ECONOPP-2

Part	IGBT Type	Configuration	Mounting Type	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Input	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package
INFINEON FS225R17OE4PBOSA1
INFINEON FS225R17KE4BOSA1	Trench Field Stop	Three Phase Inverter	Chassis Mount	Module	1700 V	18.5 nF	340 A	3 mA	Standard	2.3 V	1.5 kW	-40 C	150 °C	Module
INFINEON FS225R17KE3BOSA1	Trench Field Stop	Three Phase Inverter	Chassis Mount	Module	1700 V	20.5 nF	340 A	3 mA	Standard	2.45 V	1400 W	-40 C	125 °C	Module
