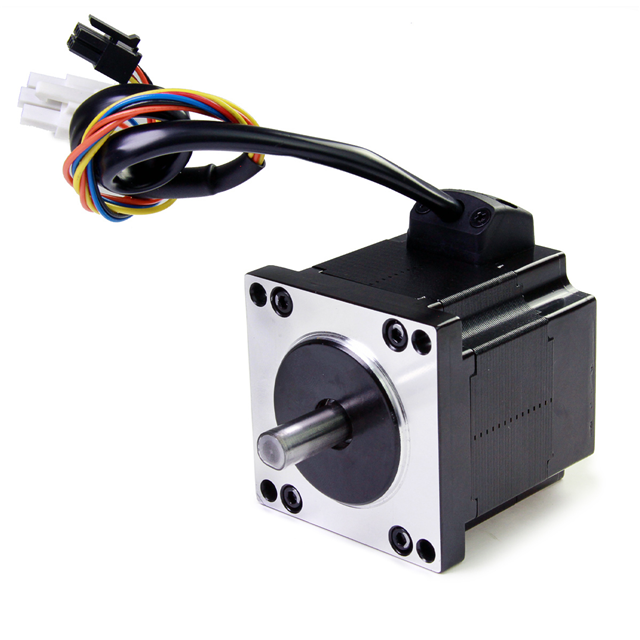

BL23E22 Series
Manufacturer: Lin Engineering
Beta
⌘K
BLDC MOTOR
| Part | Approval Agency | Function | RPM | Power - Rated | Type | Motor Type | Operating Temperature [Min] | Operating Temperature [Max] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Voltage - Rated | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lin Engineering | CE | Standard | 4000 RPM | 60 W | DC Motor | Brushless (BLDC) | -20 ░C | 50 °C | 0.315 in | 8 mm | 290 mNm | 41.07 oz-in | 48 VDC | 0.831 in | 21.1 mm | 20.53 oz-in | 144.97 mNm | 56.2 mm | 56.2 mm | 2.213 in | 2.213 in | 1.858 in | 47.2 mm |
