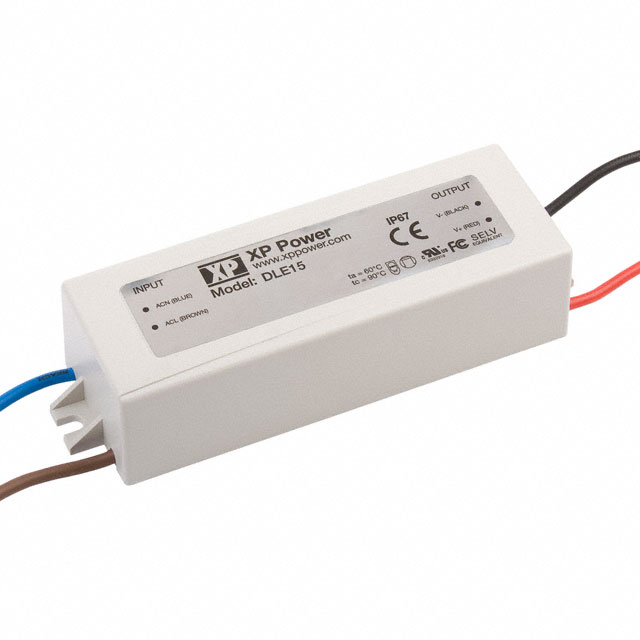

DLE15 Series
Manufacturer: XP Power
Beta
⌘K
LED DRIVER CV AC/DC 24V 630MA
| Part | Mounting Type | Current - Output (Max) [Max] | Features | Voltage - Input (Min) [Min] | Topology | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Type | Termination Style | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Output | Ratings | Number of Outputs | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Chassis Mount | 630 mA | OCP SCP | 90 VAC | AC DC Converter | CE UL | 0.98 in | 1.38 in | 4.33 in | 25 mm | 35 mm | 110 mm | 3750 VDC | Constant Voltage | Wire Leads | 264 VAC | -20 ░C | 70 °C | 83 % | 24 V | IP67 | 1 | 15 W |
