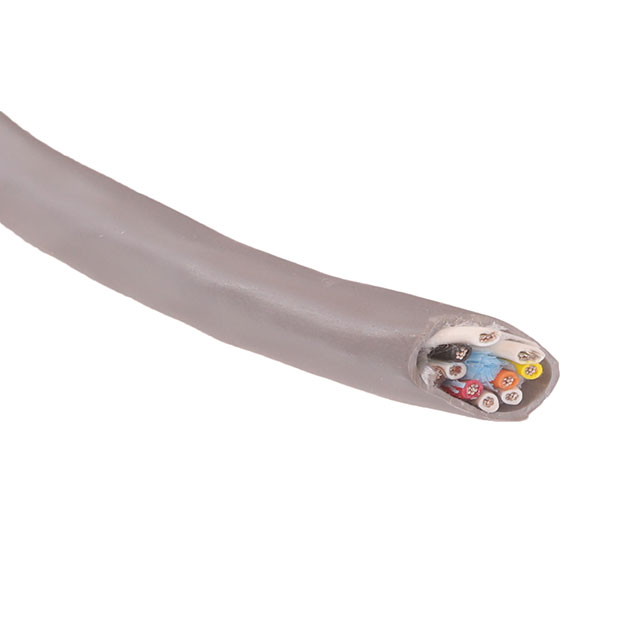

5025C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULT-PR 10COND 22AWG 1000=1000'
| Part | Wire Gauge | Usage | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Features | Jacket Color | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 22 AWG | Communication Control | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Multi-Pair | ISO 10993 UL Style 2464 | 7.39 mm | 0.291 in | 300 VDC | 30 AWG | 7 | 10 | ||||
ALPHA WIRE | 22 AWG | Communication Control | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Multi-Pair | ISO 10993 UL Style 2464 | 7.39 mm | 0.291 in | 300 VDC | 30 AWG | 7 | 10 | 100 ft | 30.5 m | ||
ALPHA WIRE | 22 AWG | Communication Control | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Multi-Pair | ISO 10993 UL Style 2464 | 7.39 mm | 0.291 in | 300 VDC | 30 AWG | 7 | 10 | 152.4 m | 500 ft |
