0905-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

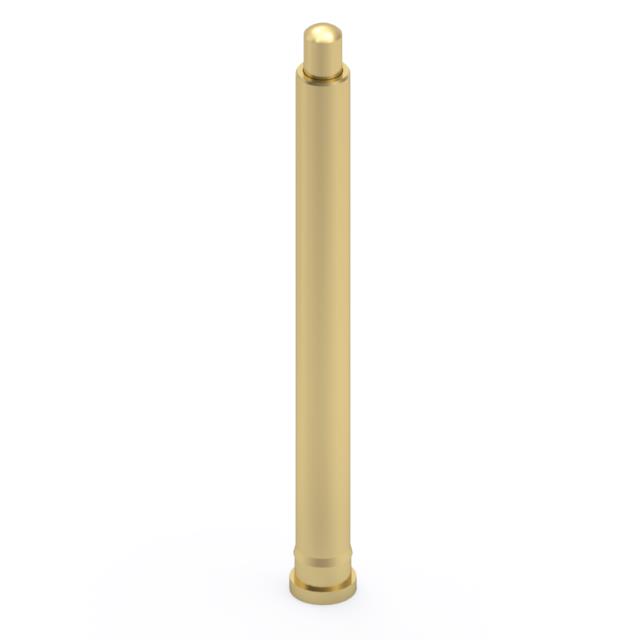

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Minimum Working Height | Minimum Working Height | Pad Layout Dimension | Pad Layout Dimension | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Mating Cycles | Mounting Type | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Recommended Working Height | Recommended Working Height | Operating Force - Mid Compression | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2 A | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 0.638 in | 16.2 mm | 0.072 in | 1.83 mm | Gold | 17.6 mm | 0.693 in | 1000000 | Surface Mount | Copper Alloy | 0.042 in | 1.07 mm | 0.665 in | 16.9 mm | ||
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 5.2 A | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 0.638 in | 16.2 mm | 0.072 in | 1.83 mm | Gold | 17.6 mm | 0.693 in | 1000000 | Surface Mount | Brass Alloy | 0.042 in | 1.07 mm | 0.665 in | 16.9 mm | 60 gf | 10 gf |
