S4B-XH-S Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

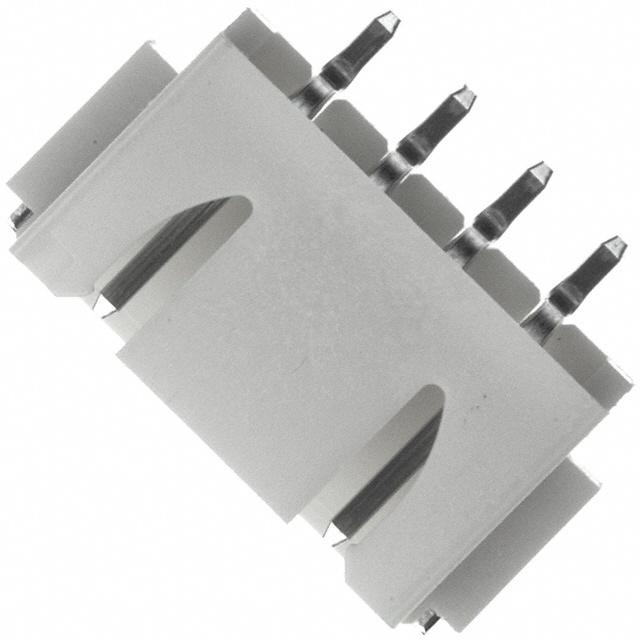

CONN HEADER SMD R/A 4POS 2.5MM
| Part | Number of Positions Loaded | Insulation Material | Number of Rows | Contact Shape | Pitch - Mating | Pitch - Mating | Mounting Type | Termination | Shrouding | Fastening Type | Number of Positions | Connector Type | Contact Type | Current Rating (Amps) | Insulation Height [custom] | Insulation Height [custom] | Contact Finish - Post | Insulation Color | Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Features | Contact Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | All | Nylon 6T Polyamide (PA6T) | 1 | Square | 2.5 mm | 0.098 in | Right Angle Surface Mount | Solder | Shrouded - 4 Wall | Detent Lock | 4 | Header | Male Pin | 3 A | 0.236 " | 6 mm | Tin | Natural | Board to Cable/Wire | 85 °C | -25 °C | 250 V | Solder Retention | Copper Alloy | UL94 V-0 |
