0997-7 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

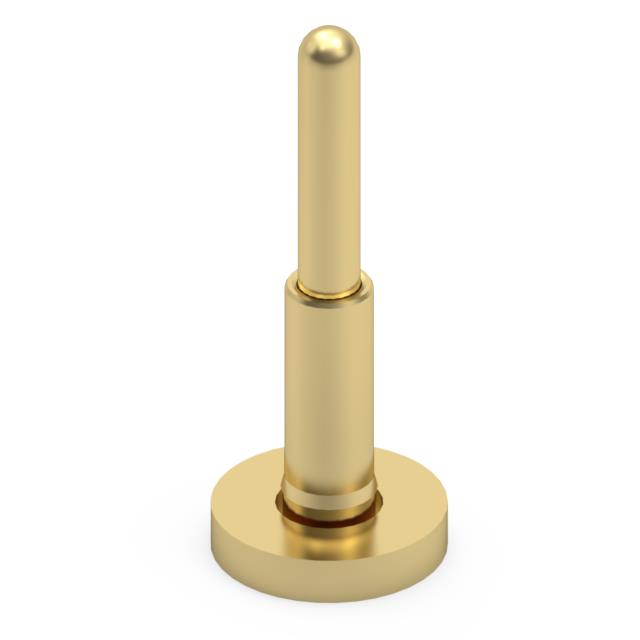

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Contact Type | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Contact Material | Operating Force - Mid Compression | Operating Force - Initial | Minimum Working Height | Minimum Working Height | Contact Finish Thickness | Contact Finish Thickness | Recommended Working Height | Recommended Working Height | Current Rating (Amps) | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1000000 | Sleeve & Plunger (Pogo Pins) | 0.159 in | 4.04 mm | Surface Mount | 0.39 in | 9.91 mm | 0.042 in | 1.07 mm | Brass Alloy | 60 gf | 10 gf | 0.335 in | 8.51 mm | 20 µin | 0.51 µm | 0.363 in | 9.21 mm | 5.2 A | Gold |
