HFW15R Series

Catalog

CONN FFC FPC TOP 15POS 1MM R/A

Part	Mating Cycles	Housing Color	FFC, FCB Thickness	Cable End Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Termination	Flat Flex Type	Contact Material	Connector/Contact Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Material Flammability Rating	Housing Material	Mounting Type	Features
Amphenol ICC (FCI) HFW15R-2STE1LF	30	Black	0.3 mm	Straight or Tapered	15	1.9 mm	0.075 in	100 V	Solder	FFC FPC	Phosphor Bronze	Contacts Top	1 mm	0.039 in	-55 C	105 ░C	Tin	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Right Angle Surface Mount
Amphenol ICC (FCI) HFW15R-2STZE1H1LF	30	Black	0.3 mm	Straight or Tapered	15	1.9 mm	0.075 in	100 V	Solder	FFC FPC	Phosphor Bronze	Contacts Top	1 mm	0.039 in	-55 C	105 ░C	Tin	UL94 V-0	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount
Amphenol ICC (FCI) HFW15R-1STAE1LF	30	Black	0.3 mm	Tapered	15	1.9 mm	0.075 in	100 V	Solder	FPC	Phosphor Bronze	Contacts Bottom	1 mm	0.039 in	-55 C	105 ░C	Gold	UL94 V-0	Glass Filled Nylon 6T Polyamide (PA6T)	Right Angle Surface Mount	Solder Retention

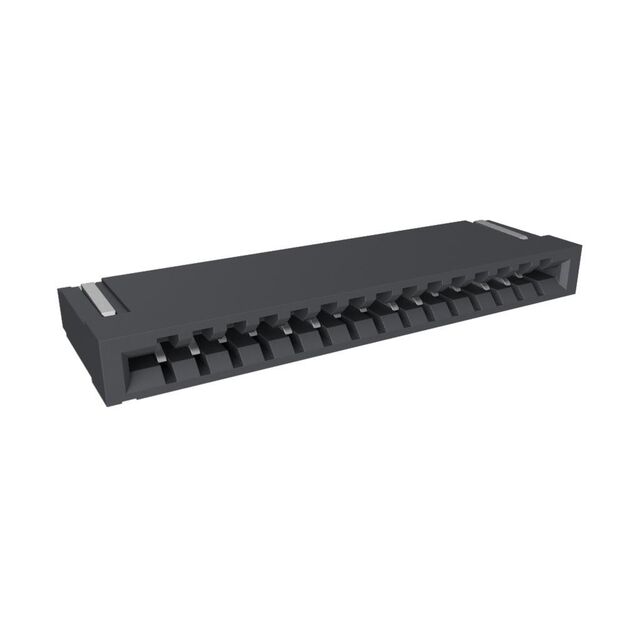

Amphenol ICC (FCI) HFW15R-1STE1H1LF	30	Black	0.3 mm	Straight or Tapered	15	1.9 mm	0.075 in	100 V	Solder	FFC FPC	Phosphor Bronze	Contacts Bottom	1 mm	0.039 in	-55 C	105 ░C	Tin	UL94 V-0	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount
