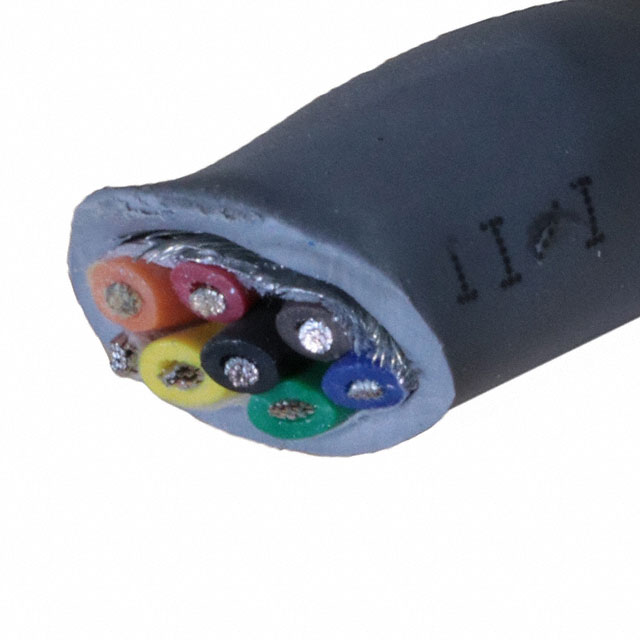

5537 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 7COND 16AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Conductor Insulation | Conductor Material | Cable Type | Features | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket Color | Wire Gauge | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 19 | 0.0117 in | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Braid Foil | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Drain Wire Rip Cord | 304.8 m | 1000 ft | 1.6 mm | 0.063 in | 7 | Black | 16 AWG | 600 V | 0.53 in | 13.46 mm | ||
 ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 19 | 0.0117 in | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Braid Foil | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Drain Wire Rip Cord | 1.6 mm | 0.063 in | 7 | Slate | 16 AWG | 600 V | 0.53 in | 13.46 mm | 100 ft | 30.5 m |
