171977 Series

Manufacturer: Molex

Catalog

2.54MM PITCH SL HEADER, SINGLE ROW, RIGHT-ANGLE, LCP, SHROUDED, SURFACE MOUNT, WITH PEGS, MATTE TIN (SN) PLATING, 3 CIRCUITS, TUBE

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Shrouding	Voltage Rating	Mounting Type	Contact Finish - Post	Features	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Style	Contact Type	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Connector Type	Current Rating (Amps)	Termination	Insulation Material	Material Flammability Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions	Contact Finish - Mating

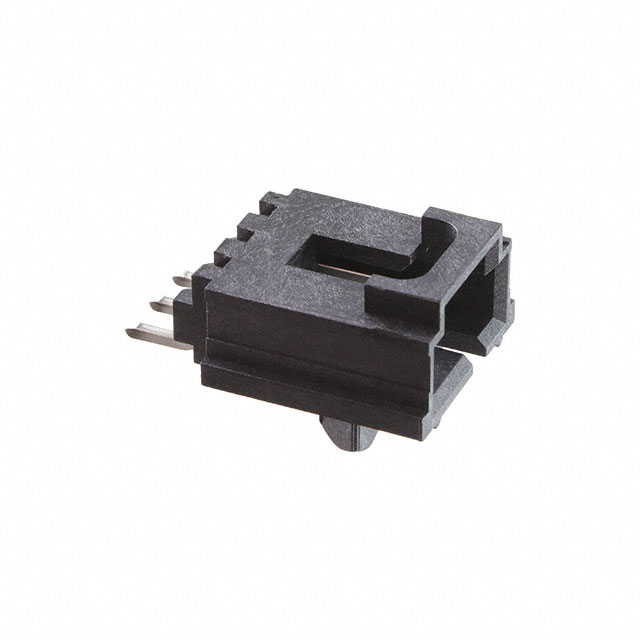

Molex 1719770003	2.54 µm	100 µin	General Purpose	Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	100 çin	2.54 çm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black

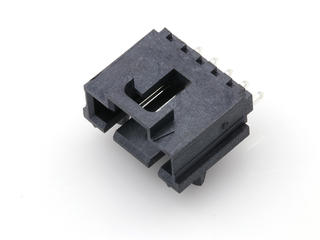

Molex 1719771005				Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	100 çin	2.54 çm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black	5

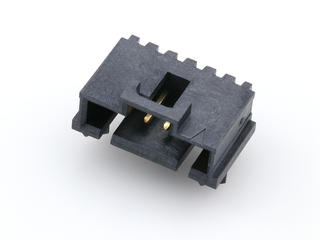

Molex 1719770006				Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	100 çin	2.54 çm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black	6
Molex 1719771019				Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	100 çin	2.54 çm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black	19
Molex 1719771011				Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	100 çin	2.54 çm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black	11
Molex 1719770122				Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	15 µin	0.38 µm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black	22	Gold
Molex 1719771020				Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	100 çin	2.54 çm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black	20
Molex 1719771103				Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	15 µin	0.38 µm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black		Gold
Molex 1719771015				Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	100 çin	2.54 çm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black	15
Molex 1719770114				Shrouded - 4 Wall	250 V	Right Angle Surface Mount	Tin	Board Guide Polarizing Key	1	0.24 in	6.1 mm	0.276 in	7 mm	0.1 "	2.54 mm	Board to Cable/Wire	Male Pin	Circular	Brass	15 µin	0.38 µm	All	Header	3 A	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Latch Holder	-40 C	105 ░C	Black	14	Gold
