ADS8324 Series
Manufacturer: Texas Instruments
Beta
⌘K
1-CHANNEL SINGLE ADC SAR 50KSPS 14-BIT SERIAL 8-PIN VSSOP T/R
| Part | Mounting Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Package / Case | Package / Case [custom] | Package / Case | Number of Inputs | Configuration | Ratio - S/H:ADC | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Bits | Number of A/D Converters | Input Type | Data Interface | Reference Type | Architecture | Power (Typ) @ Conditions | Utilized IC / Part | Supplied Contents | Input Range [Min] | Input Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 3.6 V | 1.8 V | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 1 | S/H-ADC | 1:1 | 1.8 V | 3.6 V | 85 °C | -40 °C | 14 | 1 | Differential Single Ended | SPI | External | SAR | |||||
Texas Instruments | Surface Mount | 3.6 V | 1.8 V | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 1 | S/H-ADC | 1:1 | 1.8 V | 3.6 V | 85 °C | -40 °C | 14 | 1 | Differential Single Ended | SPI | External | SAR | |||||
Texas Instruments | Surface Mount | 3.6 V | 1.8 V | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 1 | S/H-ADC | 1:1 | 1.8 V | 3.6 V | 85 °C | -40 °C | 14 | 1 | Differential Single Ended | SPI | External | SAR | |||||
 Texas Instruments | Surface Mount | 3.6 V | 1.8 V | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 1 | S/H-ADC | 1:1 | 1.8 V | 3.6 V | 85 °C | -40 °C | 14 | 1 | Differential Single Ended | SPI | External | SAR | |||||
Texas Instruments | Surface Mount | 3.6 V | 1.8 V | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 1 | S/H-ADC | 1:1 | 1.8 V | 3.6 V | 85 °C | -40 °C | 14 | 1 | Differential Single Ended | SPI | External | SAR | |||||

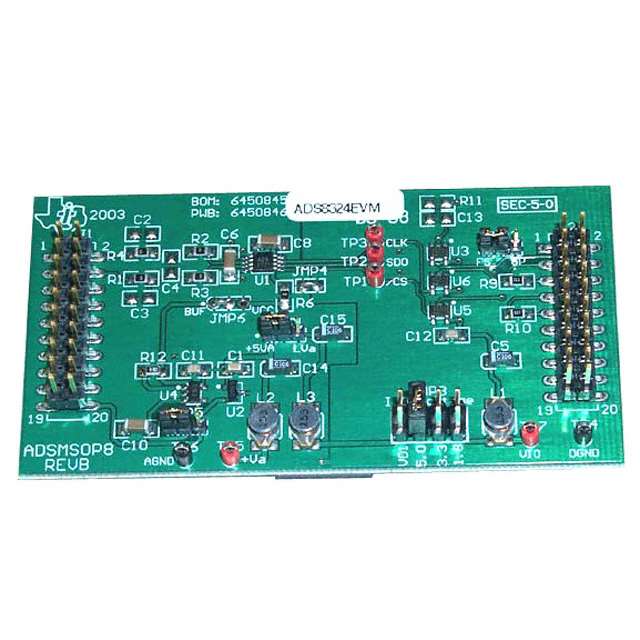

 Texas Instruments | 14 | 1 | SPI | 5 mW | ADS8324 | Board(s) | 0 V | 3.6 V |
