322 Series

Catalog

CONN PIN RCPT .016-.021 SOLDER

Part	Contact Material	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Insertion Force	Board Thickness	Board Thickness	Tail Type	Accepts Square Pin Size [y]	Accepts Square Pin Size [x]	Accepts Square Pin Size [y]	Accepts Square Pin Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Hole Diameter	Socket Depth	Socket Depth	Board Thickness [Max]	Board Thickness [Min]

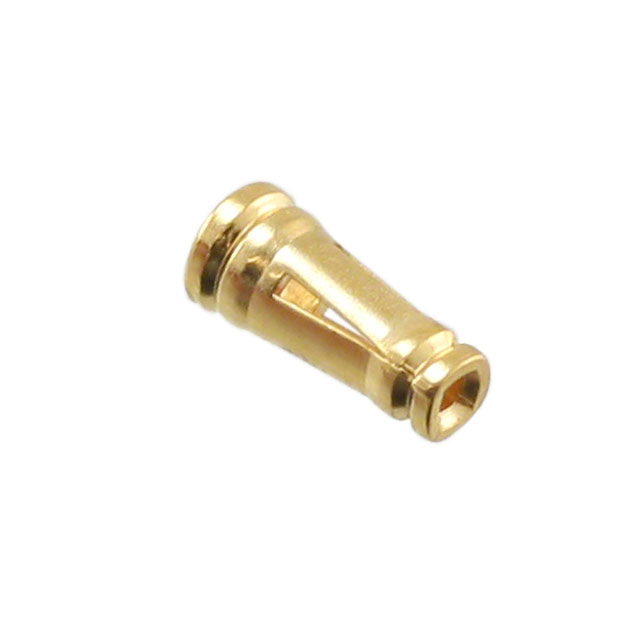

TE Connectivity Raychem Cable Protection 322-HCS-5P2-424	Beryllium Copper	0.53 mm	0.016 in	0.41 mm	0.021 in	1.12 mm	0.044 in	0.1 "	2.54 mm	0.89 N	0.76 mm	0.03 in	No Tail	0.018 in	0.28 mm	0.46 mm	0.011 in	-55 °C	125 °C	Solder	0.63 µm	24.8 µin	Gold

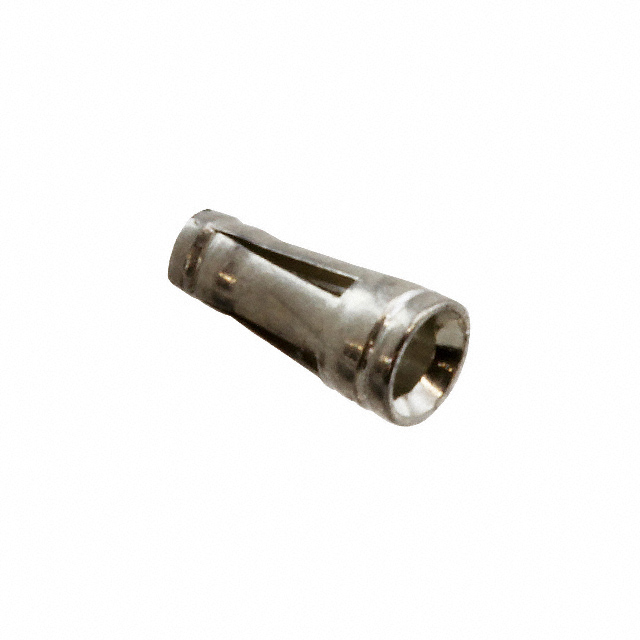

TE Connectivity Raychem Cable Protection 322-HCS5P3-300LF	Beryllium Copper	0.53 mm	0.016 in	0.41 mm	0.021 in	1.12 mm	0.044 in	0.1 "	2.54 mm	0.89 N			No Tail	0.018 in	0.28 mm	0.46 mm	0.011 in	-55 °C	105 ░C	Solder			Tin
TE Connectivity Raychem Cable Protection 322-HCS6P2-100	Beryllium Copper	0.76 mm	0.02 "	0.51 mm	0.03 "	1.6 mm	0.063 in			0.89 N	0.76 mm	0.03 in	No Tail					-55 °C	125 °C	Solder	0.76 Ám	30 Áin	Gold
TE Connectivity Raychem Cable Protection 322-HCS6P3-100	Beryllium Copper	0.76 mm	0.02 "	0.51 mm	0.03 "		0.064 in	0.1 "	2.54 mm	0.89 N			No Tail					-65 ░C	125 °C	Solder			Tin	1.63 mm	0.136 in	3.45 mm	0.125 in 3.18 mm	0.031 in 0.79 mm
