09120033 Series

Manufacturer: HARTING

Catalog

HAN-BRID RJ45 C (HIROSE, 24-26AWG, 8WIRE) + 2 10AMP CONTACTS (NOT INCLUDED)

Part	Color	Material Flammability Rating	Housing Material	Voltage Rating	Termination Style	Number of Positions	Gender	Current Rating (Amps)	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Size

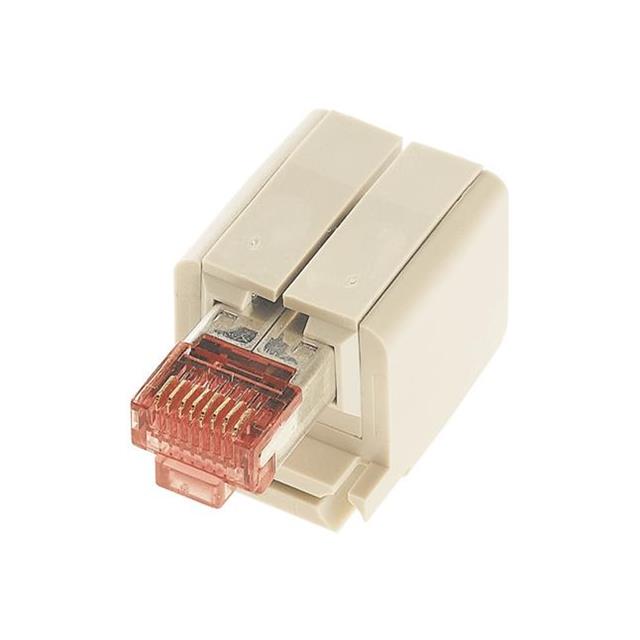

HARTING 09120033031	Gray	UL94 V-0	Polycarbonate (PC)	25 V	IDC	8p8c	Male	10 A	Insert RJ45	125 °C	-40 C

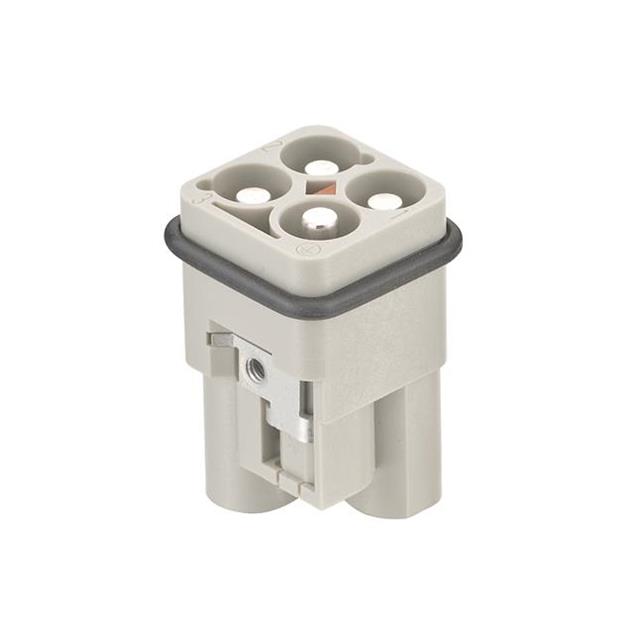

HARTING 09120033051	Gray	UL94 V-0	Polycarbonate (PC)	400 V	Crimp	3+0+Ground	Male	40 A	Insert without Contacts	125 °C	-40 C	Han® C	3 A
HARTING 09120033014

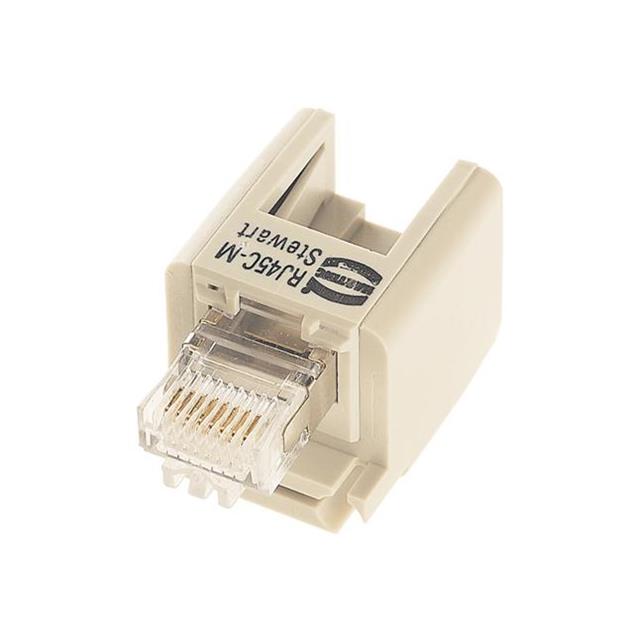

HARTING 09120033021	Gray	UL94 V-0	Polycarbonate (PC)	25 V	IDC	8p8c	Male	10 A	Insert RJ45	125 °C	-40 C

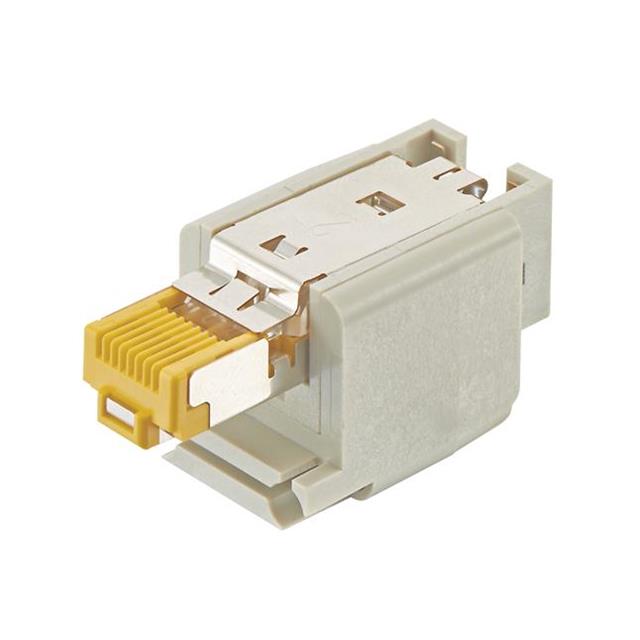

HARTING 09120033015	Gray	UL94 V-0	Polycarbonate (PC)	24 VDC	IDC	8p8c	Male	10 A	Insert RJ45	125 °C	-40 C		3 A

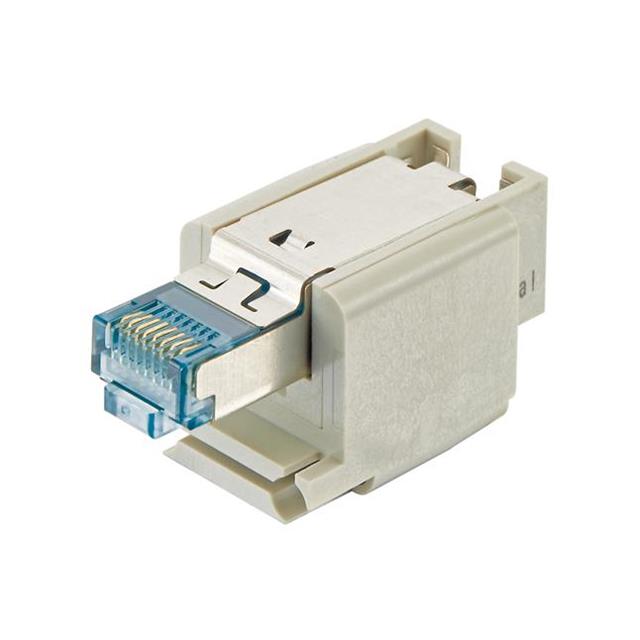

HARTING 09120033016	Gray	UL94 V-0	Polycarbonate (PC)	24 VDC	IDC	8p8c	Male	10 A	Insert RJ45	125 °C	-40 C		3 A
HARTING 09120033151	Gray	UL94 V-0	Polycarbonate (PC)	400 V	Crimp	3+0+Ground	Female	40 A	Insert without Contacts	125 °C	-40 C	Han® C	3 A
HARTING 09120033013
HARTING 09120033001	Gray	UL94 V-0	Polycarbonate (PC)	25 V	IDC	8p8c	Male	10 A	Insert RJ45	125 °C	-40 C

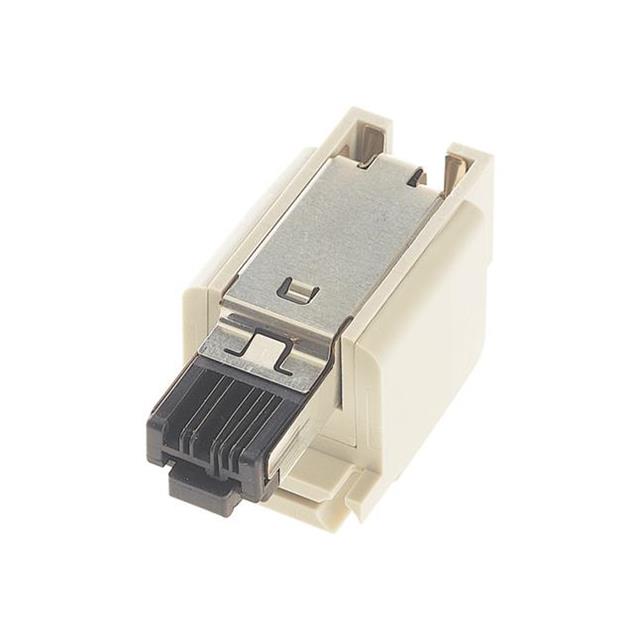

HARTING 09120033011	Gray	UL94 V-0	Polycarbonate (PC)	25 V	IDC	8p8c	Male	10 A	Insert RJ45	70 °C	-40 C
