1709 Series

Catalog

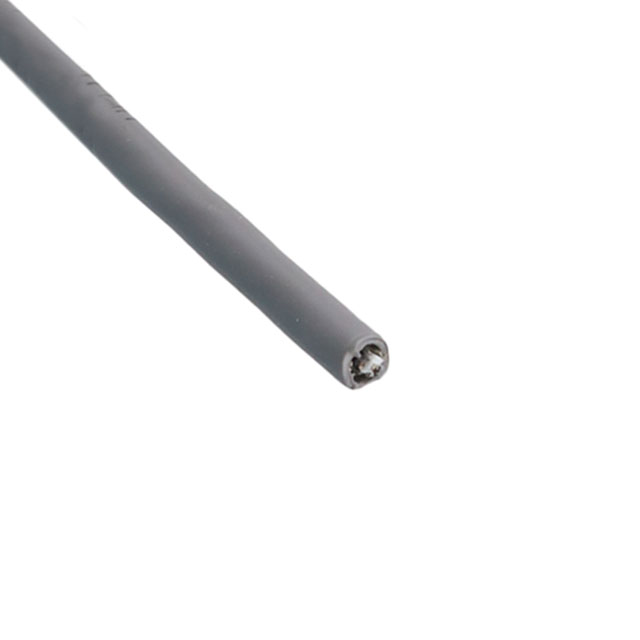

CABLE MIC 2COND 24AWG SLATE 100'

Part	Shield Material	Shield Coverage	Shield Type	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Conductor Material	Number of Conductors	Cable Type	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length
ALPHA WIRE 1709 SL005	Copper Tinned	90 %	Spiral	Communication Control	0.03 in	0.762 mm	100 ft	30.5 m	Copper Tinned	2	Microphone	24 AWG	0.185 in	4.7 mm	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	34 AWG	10	1 kV	Slate	-20 ░C	60 °C
ALPHA WIRE 1709 SL001	Copper Tinned	90 %	Spiral	Communication Control	0.03 in	0.762 mm			Copper Tinned	2	Microphone	24 AWG	0.185 in	4.7 mm	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	34 AWG	10	1 kV	Slate	-20 ░C	60 °C	304.8 m	1000 ft
