CL-SB-12 Series

Manufacturer: Nidec Components Corporation

Catalog

SWITCH SLIDE SPDT 200MA 12V

Part	Actuator Material	Electrical Life	Operating Force	Switch Travel	Actuator Type	Mounting Type	Contact Timing	Contact Finish	Termination Style	Switch Function	Voltage Rating - DC	Circuit	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Material

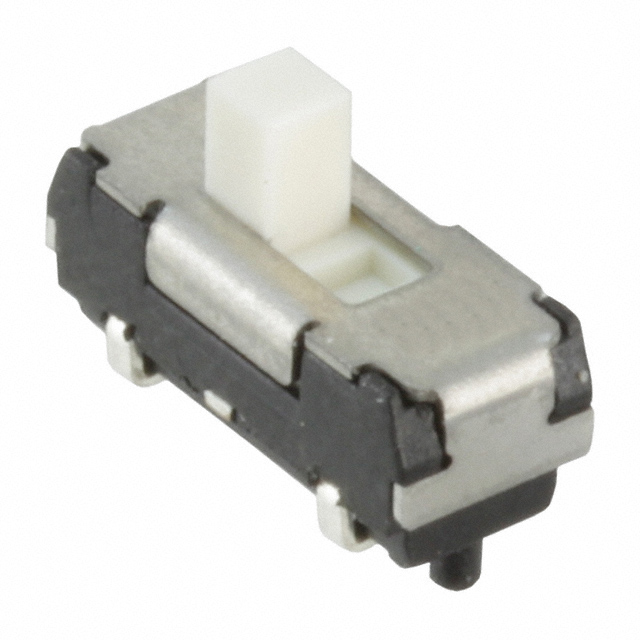

Nidec Components Corporation CL-SB-12A-01	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Surface Mount	Non-Shorting (BBM)	Silver	J Lead	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper

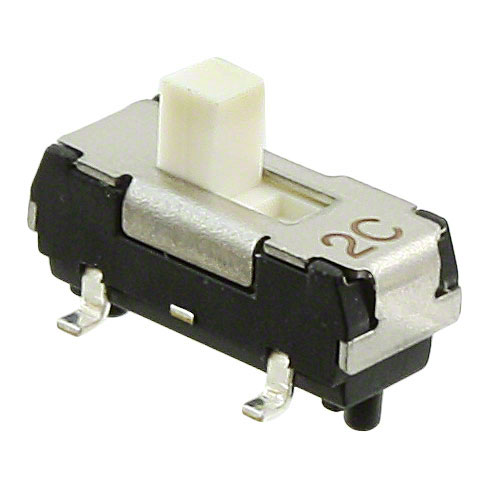

Nidec Components Corporation CL-SB-12B-01T	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Surface Mount	Non-Shorting (BBM)	Silver	Gull Wing	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper

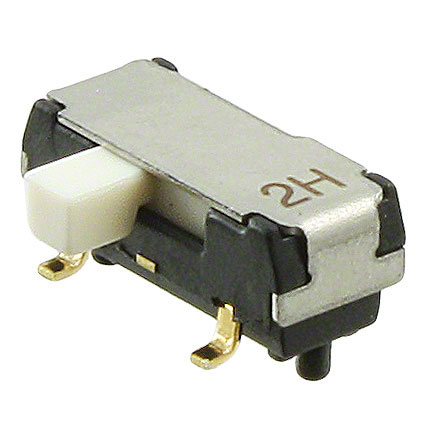

Nidec Components Corporation CL-SB-12B-12T	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Right Angle Surface Mount	Non-Shorting (BBM)	Gold	Gull Wing	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper
Nidec Components Corporation CL-SB-12B-12	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Right Angle Surface Mount	Non-Shorting (BBM)	Gold	Gull Wing	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper

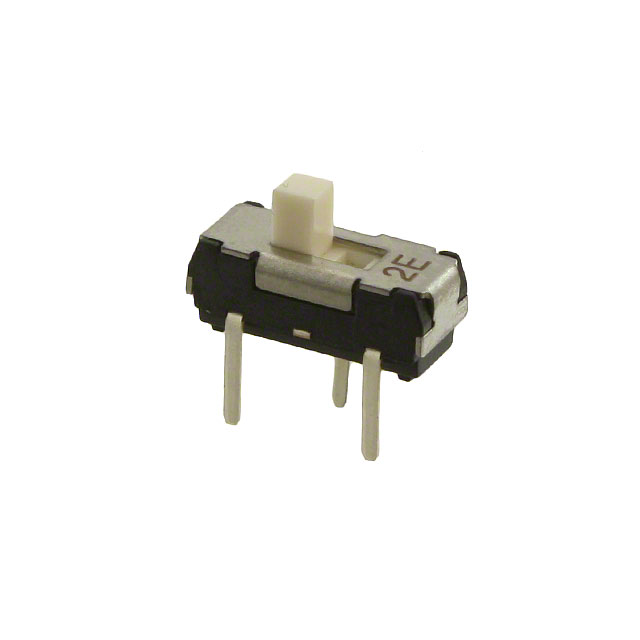

Nidec Components Corporation CL-SB-12C-01	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Through Hole	Non-Shorting (BBM)	Silver	PC Pin	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper
Nidec Components Corporation CL-SB-12A-12T	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Right Angle Surface Mount	Non-Shorting (BBM)	Gold	J Lead	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper

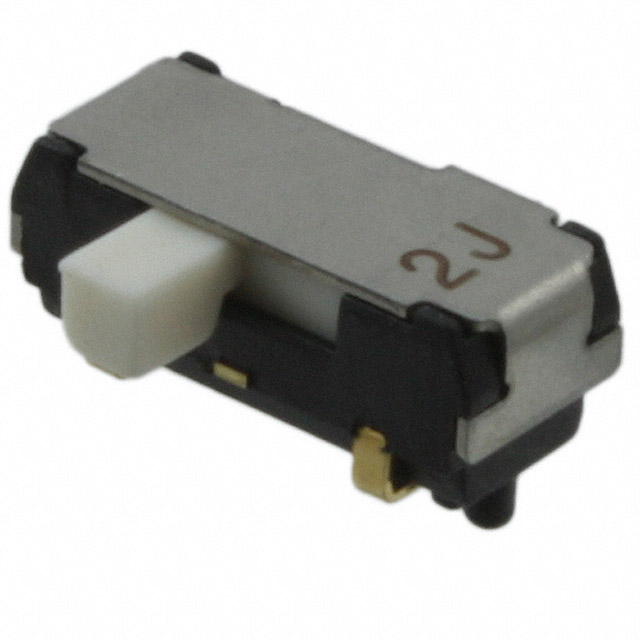

Nidec Components Corporation CL-SB-12A-12	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Right Angle Surface Mount	Non-Shorting (BBM)	Gold	J Lead	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper

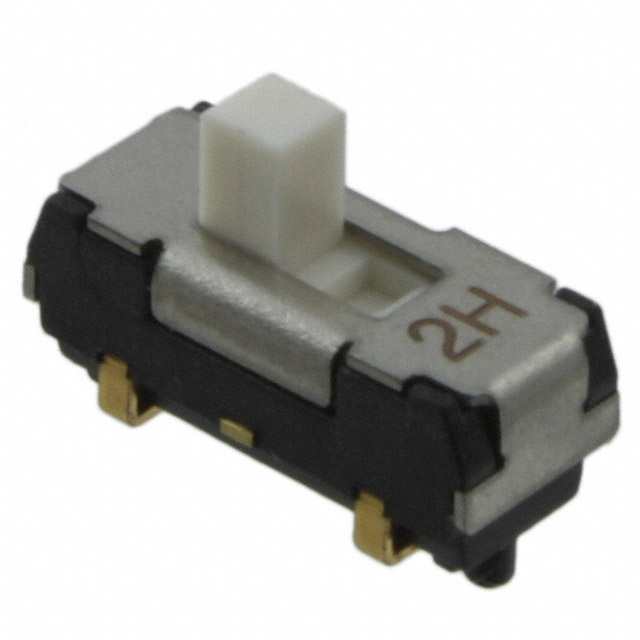

Nidec Components Corporation CL-SB-12A-02	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Surface Mount	Non-Shorting (BBM)	Gold	J Lead	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper
Nidec Components Corporation CL-SB-12A-01T	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Surface Mount	Non-Shorting (BBM)	Silver	J Lead	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper
Nidec Components Corporation CL-SB-12C-02	Polyamide (PA) Nylon	10000 Cycles	153 gf	2 mm	Standard	Through Hole	Non-Shorting (BBM)	Gold	PC Pin	On-On	12 V	SPDT	2 mm	85 °C	-40 C	200 mA	Copper
