300AWSP1 Series
Manufacturer: E-Switch
Beta
⌘K

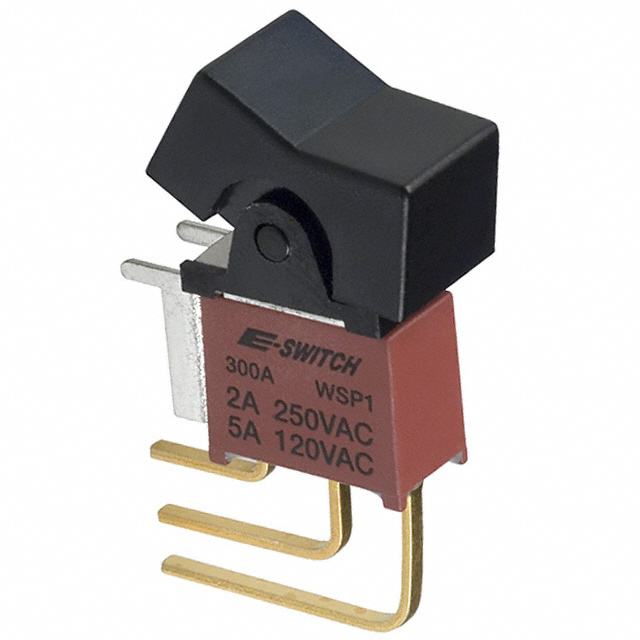

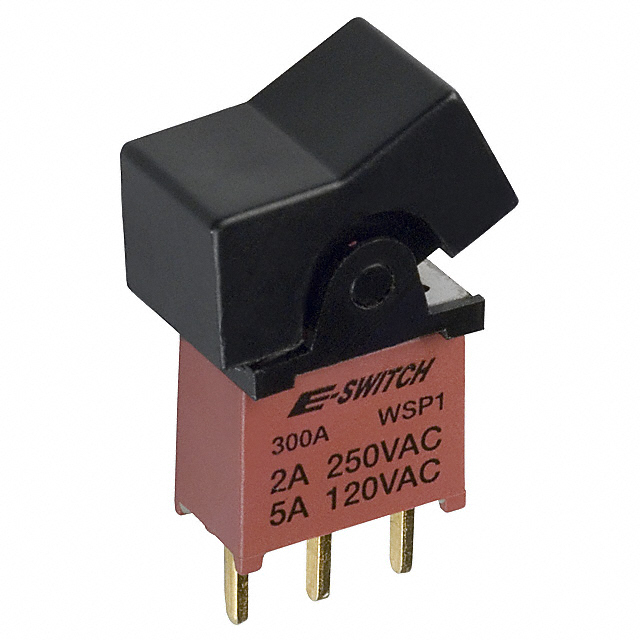

SWITCH ROCKER SPDT 5A 120V
| Part | Electrical Life | Features | Termination Style | Voltage Rating - DC | Color - Actuator/Cap | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Mounting Type | Switch Function | Ingress Protection | Current Rating (Amps) | Voltage Rating - AC | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Cycles | Epoxy Sealed Terminals | PC Pin | 28 V | Black | SPDT | 85 °C | -30 ░C | Concave | Through Hole | On-On | IP67 - Dust Tight Waterproof | 5 A | 120 V | No Marking | ||
E-Switch | 30000 Cycles | Epoxy Sealed Terminals | PC Pin | 28 V | Black | SPDT | 85 °C | -30 ░C | Concave | Through Hole | On-On | IP67 - Dust Tight Waterproof | 5 A | 120 V | No Marking | ||
E-Switch | 30000 Cycles | Epoxy Sealed Terminals | PC Pin | 20 V | Black | SPDT | 85 °C | -30 ░C | Concave | Right Angle Through Hole Vertical | On-On | IP67 - Dust Tight Waterproof | 0.4 VA | 20 V | No Marking | ||
 E-Switch | 30000 Cycles | Epoxy Sealed Terminals | PC Pin | 20 V | Black | SPDT | 85 °C | -30 ░C | Concave | Right Angle Through Hole | On-On | IP67 - Dust Tight Waterproof | 0.4 VA | 20 V | No Marking | ||
 E-Switch | 30000 Cycles | Epoxy Sealed Terminals | PC Pin | 20 V | Black | SPDT | 85 °C | -30 ░C | Concave | Through Hole | On-On | IP67 - Dust Tight Waterproof | 0.4 VA | 20 V | No Marking | ||
E-Switch | 30000 Cycles | Epoxy Sealed Terminals | PC Pin | 20 V | Black | SPDT | 85 °C | -30 ░C | Paddle | Through Hole | On-On | IP67 - Dust Tight Waterproof | 0.4 VA | 20 V | No Marking | ||
E-Switch | 30000 Cycles | Epoxy Sealed Terminals | Solder Lug | 28 V | Black | SPDT | 85 °C | -30 ░C | Paddle | Flange Panel Mount | On-On | IP67 - Dust Tight Waterproof | 5 A | 120 V | No Marking | 7.2 mm | 13.14 mm |
E-Switch | 30000 Cycles | Epoxy Sealed Terminals | PC Pin | 28 V | Black | SPDT | 85 °C | -30 ░C | Concave | Through Hole | On-On | IP67 - Dust Tight Waterproof | 5 A | 120 V | No Marking | ||
 E-Switch | 30000 Cycles | Epoxy Sealed Terminals | PC Pin | 28 V | Black | SPDT | 85 °C | -30 ░C | Concave | Right Angle Through Hole Vertical | On-On | IP67 - Dust Tight Waterproof | 5 A | 120 V | No Marking | ||
E-Switch | 30000 Cycles | Epoxy Sealed Terminals | Solder Lug | 20 V | Black | SPDT | 85 °C | -30 ░C | Paddle | Flange Panel Mount | On-On | IP67 - Dust Tight Waterproof | 0.4 VA | 20 V | No Marking | 7.2 mm | 13.14 mm |
