9GA0912 Series

Catalog

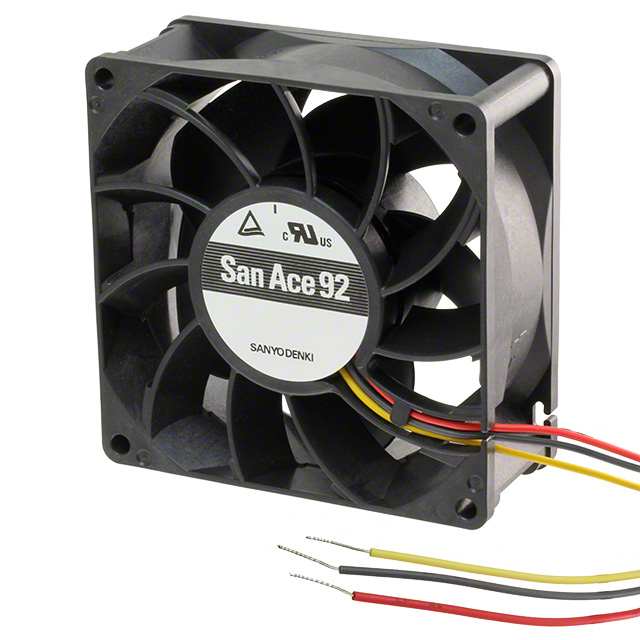

AXIAL FAN, HIGH PERFORMANCE, BALL, 92 GA SERIES, 12 VDC, 92 MM, 25 MM, 68.2 CU.FT/MIN, 1.93 M3/MIN ROHS COMPLIANT: YES

Part	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	RPM	Bearing Type	Voltage - Rated	Weight	Weight	Noise	Termination	Width [y]	Static Pressure	Static Pressure	Power (Watts)	Air Flow	Air Flow	Fan Type	Approval Agency	Features	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Width [x]	Lifetime @ Temp.
Sanyo Denki America Inc. 9GA0912P4G03	Plastic	Plastic	10.2 VDC	13.8 VDC	0.28 A	92 mm	92 mm	4400 RPM	Ball	12 VDC	125.19 g	0.276 lb	39 dB(A)	4 Wire Leads	25 mm	0.326 in H2O	81.2 Pa	3.36 W	68.1 CFM	1.91 m³/min	Tubeaxial	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	-20 ░C	70 °C
Sanyo Denki America Inc. 9GA0912W401	Plastic	Plastic				92 mm	92 mm		Ball	12 VDC				3 Wire Leads	25 mm			2.28 W			Tubeaxial		Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0912H1021	Plastic	Plastic	10.2 VDC	13.8 VDC		92 mm	92 mm	9700 RPM	Ball	12 VDC	239.95 g	0.529 lb	63 dB	2 Wire Leads	38 mm	2.01 in H2O	500.7 Pa	25.2 W	141 CFM	3.95 m³/min	Tubeaxial	CSA TUV UL		-20 ░C	70 °C	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0912H1011	Plastic	Plastic	10.2 VDC	13.8 VDC		92 mm	92 mm	9700 RPM	Ball	12 VDC	239.95 g	0.529 lb	63 dB	3 Wire Leads	38 mm	2.01 in H2O	500.7 Pa	25.2 W	141 CFM	3.95 m³/min	Tubeaxial	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	-20 ░C	70 °C	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0912H4011	Plastic	Plastic				92 mm	92 mm		Ball	12 VDC				3 Wire Leads	25 mm			2.28 W			Tubeaxial		Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0912H1D01	Plastic	Plastic	10.2 VDC	13.8 VDC		92 mm	92 mm	9700 RPM	Ball	12 VDC	239.95 g	0.529 lb	63 dB	3 Wire Leads	38 mm	2.01 in H2O	500.7 Pa	25.2 W	141 CFM	3.95 m³/min	Tubeaxial	CSA TUV UL	Locked Rotor Sensor	-20 ░C	70 °C	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0912S401	Plastic	Plastic	10.2 VDC	13.8 VDC	0.2 A	92 mm	92 mm	3800 RPM	Ball	12 VDC	125.19 g	0.276 lb	35 dB	3 Wire Leads		0.24 in H2O	59.8 Pa	2.4 W	59 CFM	1.65 mł/min	Tubeaxial	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	-20 ░C	70 °C		25.2 mm
Sanyo Denki America Inc. 9GA0912P1H03	Plastic	Plastic	10.2 VDC	13.8 VDC	2.1 A	92 mm	92 mm	9700 RPM	Ball	12 VDC	239.95 g	0.529 lb	63 dB	4 Wire Leads	38 mm	2.01 in H2O	500.7 Pa	25.2 W	141.2 CFM	3.95 m³/min	Tubeaxial	CSA TUV UL	PWM Control Speed Sensor (Tach)	-20 ░C	70 °C			40000 Hrs
Sanyo Denki America Inc. 9GA0912P4G031	Plastic	Plastic	10.2 VDC	13.8 VDC	0.28 A	92 mm	92 mm	4400 RPM	Ball	12 VDC	125.19 g	0.276 lb	39 dB(A)	4 Wire Leads	25 mm	0.33 in H2O	82.2 Pa	3.36 W	68.2 CFM	1.91 m³/min	Tubeaxial	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	-20 ░C	70 °C
Sanyo Denki America Inc. 9GA0912P1H031	Plastic	Plastic	10.2 VDC	13.8 VDC	2.1 A	92 mm	92 mm	9700 RPM	Ball	12 VDC	239.95 g	0.529 lb	63 dB	4 Wire Leads	38 mm	2.01 in H2O	500.7 Pa	25.2 W	141.2 CFM	3.95 m³/min	Tubeaxial	CSA TUV UL	PWM Control Speed Sensor (Tach)	-20 ░C	70 °C			40000 Hrs
