BGC88 Series
Manufacturer: TE Intercontec
Beta
⌘K

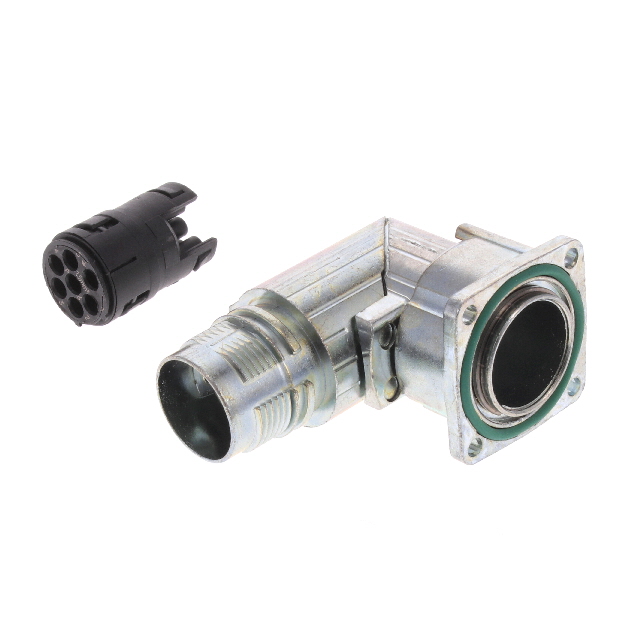

CONN RCPT HSG MALE 7P PNL MT RA
| Part | Contact Shape | Insert Material | Note | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Orientation | Features | Shell Finish | Shielding | Fastening Type | Number of Positions | Mounting Type | Shell Size - Insert | Ingress Protection | Material Flammability Rating | Mounting Feature | Connector Type | Shell Material | Housing Color | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | Circular | Polybutylene Terephthalate (PBT) | Contacts Not Included | -20 ░C | 130 °C | 1 Backshell 1 Connector 1 O-Ring | Keyed | Backshell Rotatable | Chromate | Unshielded | Push-Twist | 7 | Panel Mount Right Angle | M17-7 | IP66 IP67 | UL94 V-0 | Flange | Receptacle Housing | Zinc Die Cast | Silver | For Male Pins |
