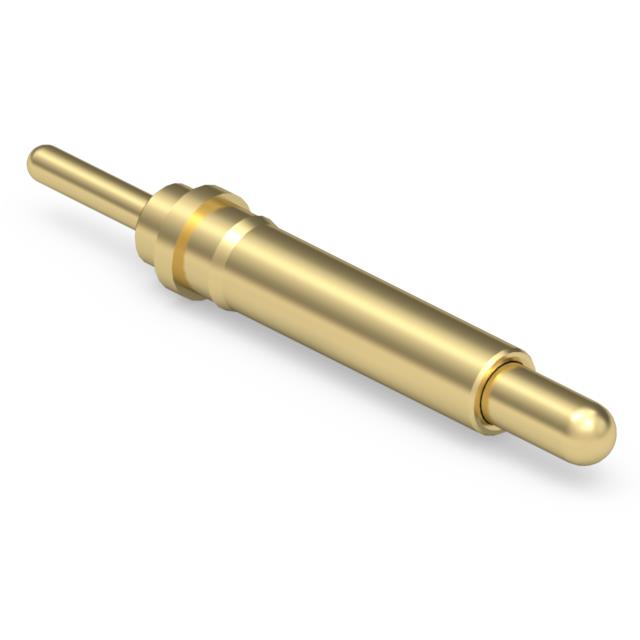

0914-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Recommended Working Height | Recommended Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Mating Cycles | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Mid Compression | Pad Layout Dimension | Pad Layout Dimension | Minimum Working Height | Minimum Working Height | Contact Type | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.319 in | 8.11 mm | 0.334 in | 8.48 mm | 5.2 A | 1000000 | Through Hole | 20 µin | 0.51 µm | 60 gf | 0.072 in | 1.83 mm | 6.96 mm | 0.274 in | Sleeve & Plunger (Pogo Pins) | 0.042 in | 1.07 mm | Gold | Brass Alloy |
