09305160 Series
Manufacturer: HARTING
Beta
⌘K

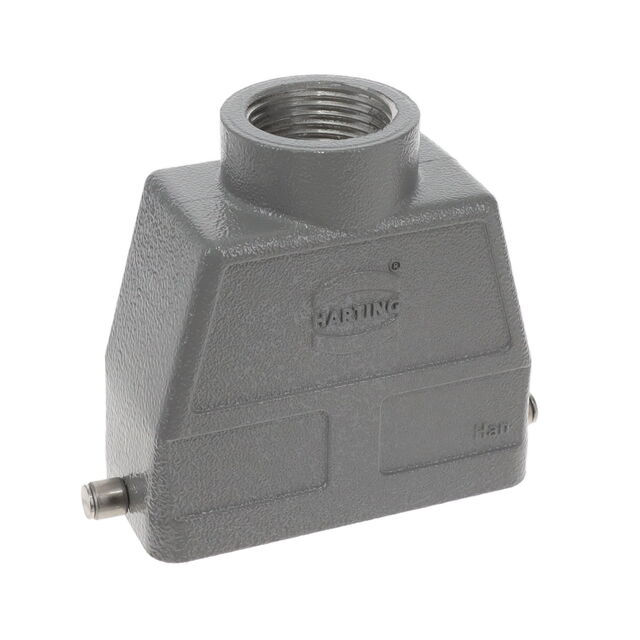

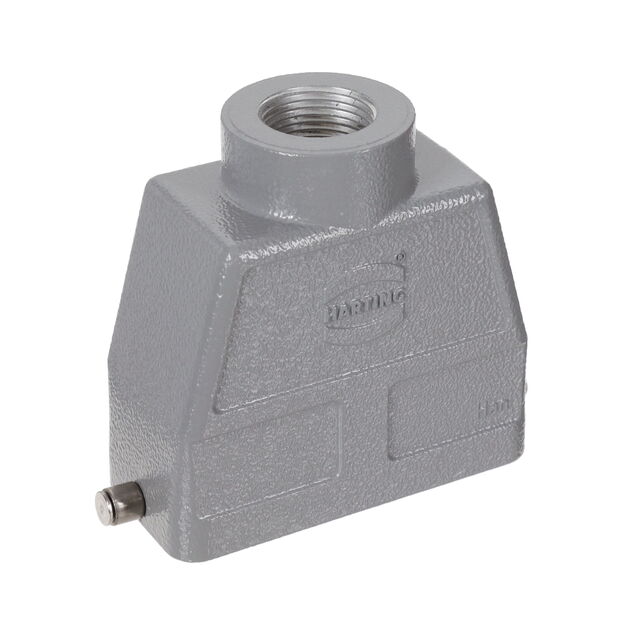

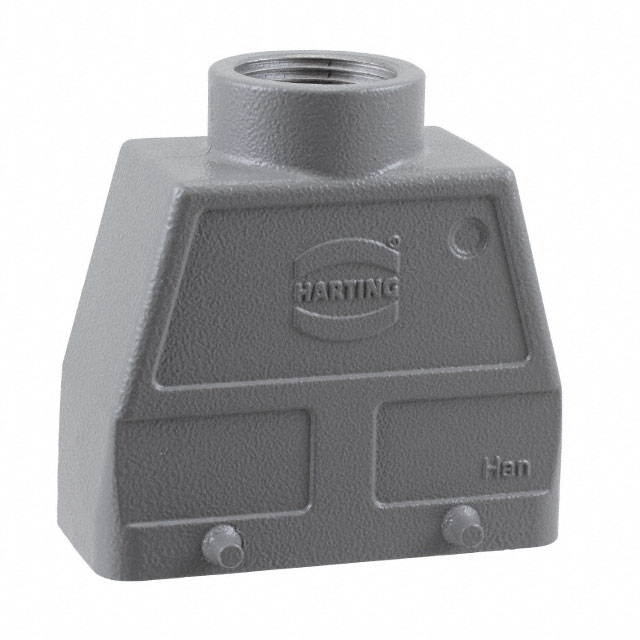

16B HOOD TOP ENTRY, SINGLE LEVER, HIGH CONSTRUCTION, NPT3/4"
| Part | Housing Finish | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Size | Housing Color | Thread Size | Ingress Protection | Lock Location | Housing Material | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Powder Coated | Hood | 125 °C | -40 C | 16 B | Gray | NPT-3/4 | IP65 IP66 IP67 | Locking Clip (1) on Base Bottom | Aluminum Die Cast | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Top Entry | |
 HARTING | Powder Coated | Hood | 125 °C | -40 C | 16 B | Gray | NPT-3/4 | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Hood | Aluminum Die Cast | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Side Entry | |
 HARTING | Powder Coated | Hood | 125 °C | -40 C | 16 B | Gray | NPT-1 | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Hood | Aluminum Die Cast | 3.681 in | 43 mm | 3.087 " | 78.4 mm | 1.693 " | 93.5 mm | Top Entry | Cable to Cable |
 HARTING | Powder Coated | Hood | 125 °C | -40 C | 16 B | Gray | NPT-3/4 | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Base Bottom | Aluminum Die Cast | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Side Entry | |
 HARTING | Powder Coated | Hood | 125 °C | -40 C | 16 B | Gray | NPT-1 | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Aluminum Die Cast | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Top Entry | |
 HARTING | Powder Coated | Hood | 125 °C | -40 C | 16 B | Gray | NPT-1 | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Base Bottom | Aluminum Die Cast | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Top Entry | |
 HARTING | Powder Coated | Hood | 125 °C | -40 C | 16 B | Gray | NPT-3/4 | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Base Bottom | Aluminum Die Cast | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Top Entry | |
 HARTING | Powder Coated | Hood | 125 °C | -40 C | 16 B | Gray | NPT-1 | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Hood | Aluminum Die Cast | 3.681 in | 43 mm | 3.087 " | 78.4 mm | 1.693 " | 93.5 mm | Top Entry | Cable to Cable |
