4212 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

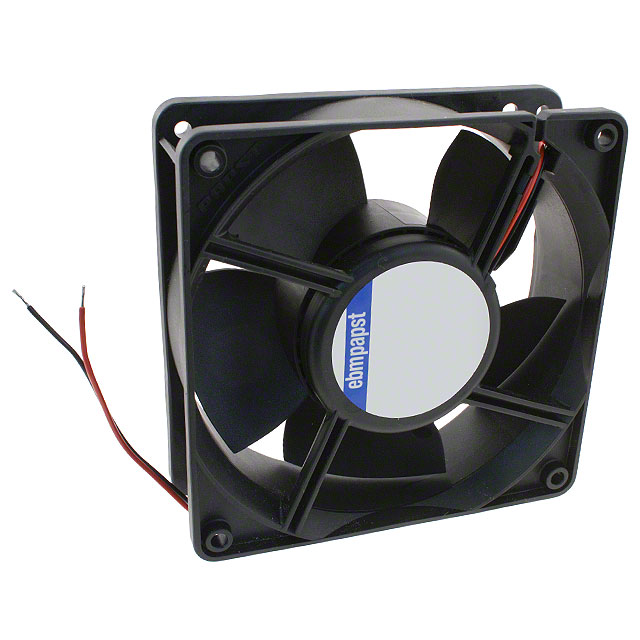

FAN AXIAL 119X38MM 12VDC WIRE
| Part | Air Flow | Air Flow | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Lifetime @ Temp. | Fan Type | RPM | Width [y] | Weight | Weight | Operating Temperature [Min] | Operating Temperature [Max] | Noise | Termination | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Voltage - Rated | Bearing Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 2.1 m³/min | 75 CFM | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 7 V | 14.5 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | 70000 Hrs | Tubeaxial | 2350 RPM | 38 mm | 0.639 lb | 289.85 g | -4 °F | 167 °F | 38 dB(A) | 2 Wire Leads | Square | 119 mm | 119 mm | 2.2 W | 12 VDC | Ball | CE CSA UL VDE |
ebm-papst Inc. | 2.72 m³/min | 97 CFM | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 7 V | 14.5 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Tubeaxial | 38 mm | 0.63 lb | 285.76 g | 45 dB(A) | 2 Wire Leads | Square | 119 mm | 119 mm | 4.3 W | 12 VDC | Ball | CE CSA UL VDE |
