FF0380SA Series

Catalog

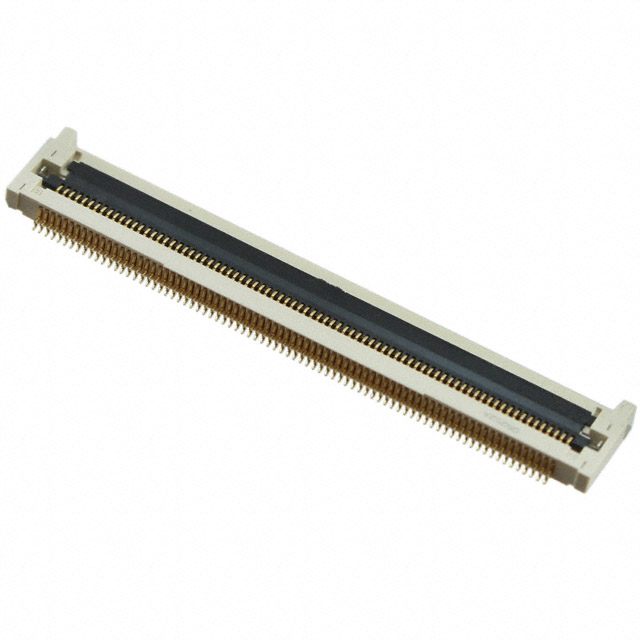

CONN FPC BOTTOM 80POS 0.5MM R/A

Part	Mating Cycles	Housing Color	Actuator Color	Current Rating (Amps)	Voltage Rating	Cable End Type	Actuator Material	Pitch	Pitch	Termination	FFC, FCB Thickness	Housing Material	Locking Feature	Contact Material	Height Above Board	Height Above Board	Mounting Type	Flat Flex Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Contact Finish
JAE Electronics FF0380SA1-R2000	20	White	Black	500 mA	50 V	Straight	Glass Filled Nylon Polyamide (PA)	0.02 "	0.5 mm	Solder	0.3 mm	Liquid Crystal Polymer (LCP)	Rotary Lock	Copper Alloy	2 mm	0.079 in	Right Angle Surface Mount	FPC	80	85 °C	-40 C	Contacts Bottom	Gold
JAE Electronics FF0380SA1	20	White	Black	500 mA	50 V	Straight	Glass Filled Nylon Polyamide (PA)	0.02 "	0.5 mm	Solder	0.3 mm	Liquid Crystal Polymer (LCP)	Rotary Lock	Copper Alloy	2 mm	0.079 in	Right Angle Surface Mount	FPC	80	85 °C	-40 C	Contacts Bottom	Gold
