9222 Series
Manufacturer: Belden Inc.
Beta
⌘K

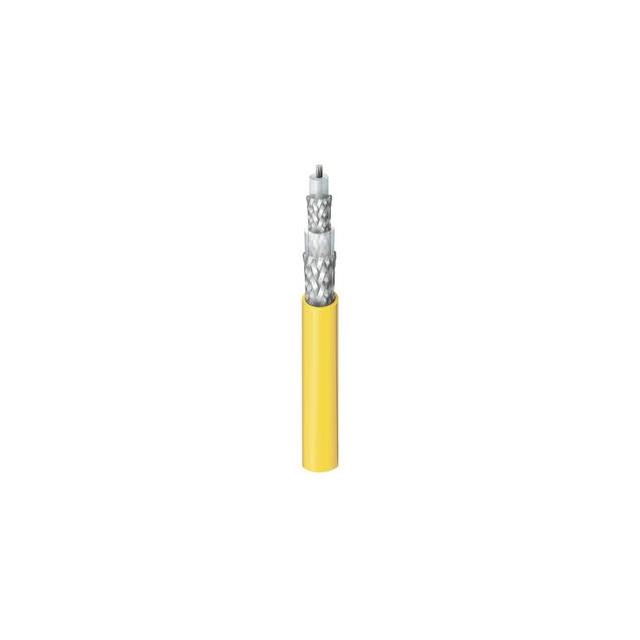

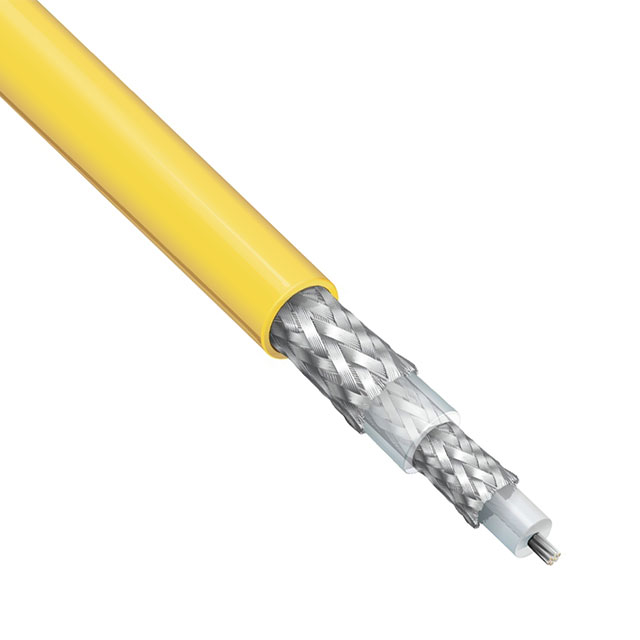

TRIAXIAL CABLE, DOUBLE BRAID SHIELD, RG58A, 20 AWG, 50 OHM, 498.69 FT, 152.4 M ROHS COMPLIANT: YES
| Part | Shield Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Impedance | Cable Type | Length [x] | Length [x] | Shield Type | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Jacket (Insulation) Material | Jacket Color | Conductor Strand | Cable Group | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 95 % | -40 C | 75 ░C | Copper Tinned | 66 | 0.12 in | 3.05 mm | 50 Ohms | Coaxial | 152.4 m | 500 ft | Braid | 0.241 in | 6.12 mm | Poly-Vinyl Chloride (PVC) | Yellow | 7 Strands 28 AWG | RG-58A | 20 AWG |
 Belden Inc. | Copper Tinned | 95 % | -40 C | 75 ░C | Copper Tinned | 66 | 0.12 in | 3.05 mm | 50 Ohms | Triaxial | 152.4 m | 500 ft | Braid | 0.241 in | 6.12 mm | Poly-Vinyl Chloride (PVC) | Yellow | 7 Strands 28 AWG | RG-58A | 20 AWG |
