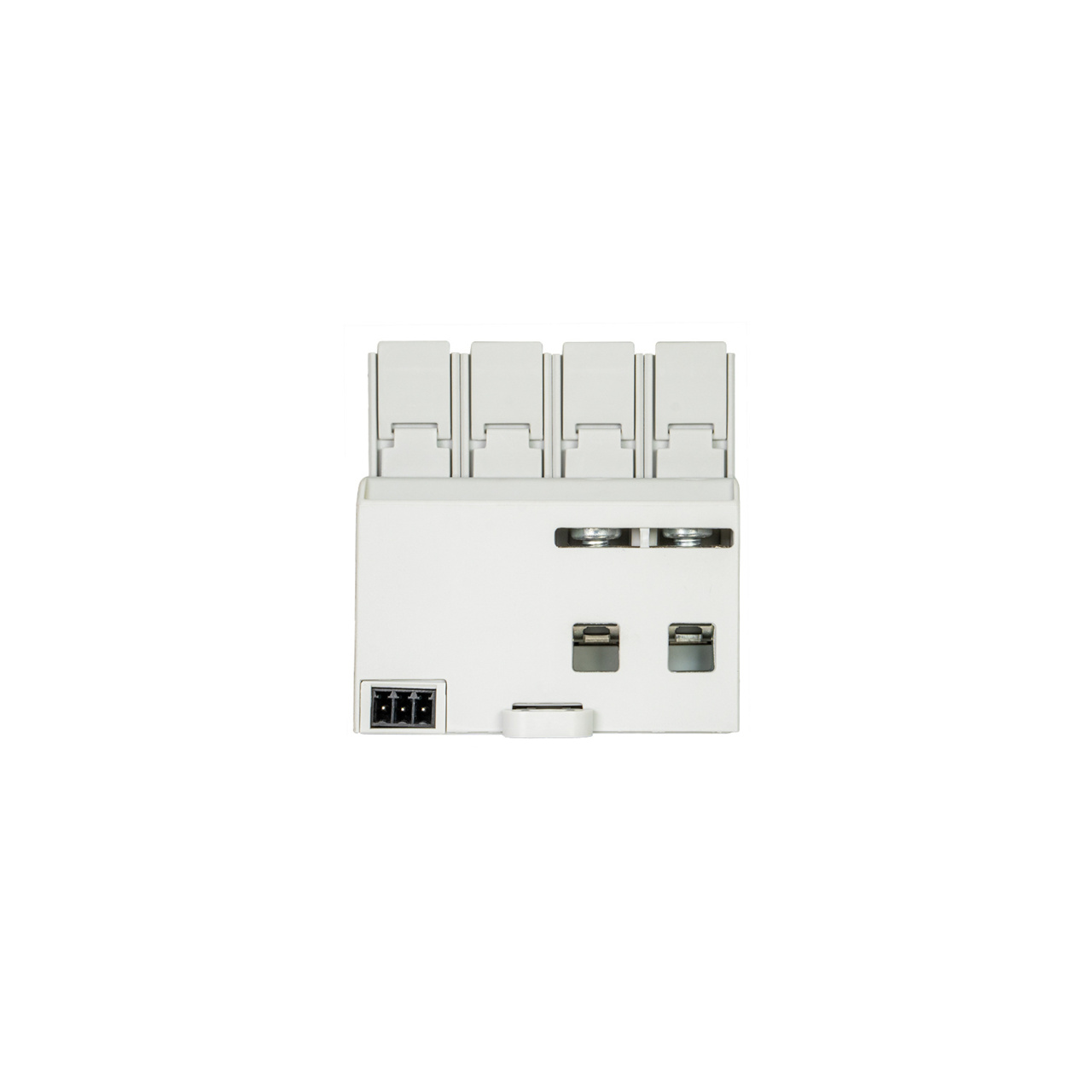

SPD2-300-4P0-R Series

"SPD,DIN RAIL,TYPE 2,4P0,300V,RC"

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

"SPD,DIN RAIL,TYPE 2,4P0,300V,RC"

Part	Number of Poles	Current - Discharge (Nom) (8/20µS)	Features	Current - Short Circuit Rating (SCCR)	Voltage - Continuous Operating (Max) (MCOV) [Max]	Current - Discharge (Max) (8/20µS) [Max]	Voltage - Protection Level (VP) (2416)	Form	Mounting Type	Voltage - Protection Rating (VPR)	Operating Temperature [Min]	Operating Temperature [Max]	Type
Littelfuse/Commercial Vehicle Products SPD2-300-4P0-R	4 poles	20 kA	Remote Signaling Contacts Thermally Protected	150 kA	300 VAC	50 kA	1.5 kV	Base + Module	DIN Rail	900 V	-40 °C	80 C	Type 1 Type 2

Catalog

"SPD,DIN RAIL,TYPE 2,4P0,300V,RC"

Description

Surge protection devices (SPDs) provide equipment protection from transient overvoltage events lasting micro-seconds. By limiting the overvoltage to the equipment during these events, costly damage and downtime can be mitigated. The surge protection devices for the 4+0 configuration are available for 120 V to 480 V nominal voltage sub-distribution board applications.
