M80-771 Series

Catalog

8+8 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Style	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Number of Positions Loaded	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insulation Color	Number of Positions	Fastening Type	Material Flammability Rating	Termination	Contact Length - Post	Contact Length - Post	Mounting Type	Current Rating (Amps)	Number of Rows [custom]	Connector Type	Contact Material	Contact Finish - Post	Contact Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shrouding	Insulation Material	Features	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions [custom]
Harwin Inc. M80-7711622	118.1 µin	3 µm	Board to Board Cable	0.235 in	5.97 mm	2 mm	0.079 in	Gold	All	120 VDC	-55 C	125 °C	Circular	Black	16	Latch Lock	UL94 V-0	Solder	4.5 mm	0.177 in	Right Angle Through Hole	2.2 A	2	Header	Phosphor Bronze	Tin-Lead	Male Pin	29.5 µin	0.75 µm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Strain Relief Clips	0.079 "	2 mm

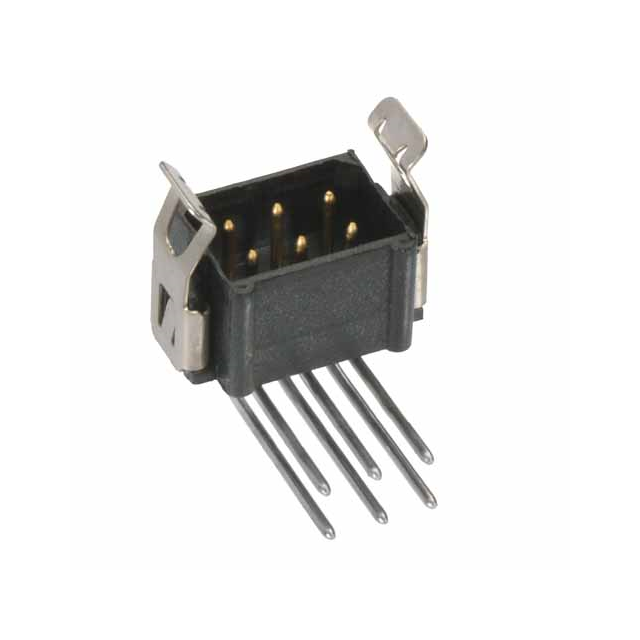

Harwin Inc. M80-7710442	118.1 µin	3 µm	Board to Board Cable	0.235 in	5.97 mm	2 mm	0.079 in	Gold	All	120 VDC	-55 C	125 °C	Circular	Black	4	Latch Lock	UL94 V-0	Solder	4.5 mm	0.177 in	Right Angle Through Hole	2.2 A	2	Header	Phosphor Bronze	Tin	Male Pin	29.5 µin	0.75 µm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Strain Relief Clips	0.079 "	2 mm
Harwin Inc. M80-7712645			Board to Board Cable	0.235 in	5.97 mm	2 mm	0.079 in	Gold	All	120 VDC	-55 C	125 °C	Circular	Black	26	Latch Lock	UL94 V-0	Solder	4.5 mm	0.177 in	Right Angle Through Hole	2.2 A	2	Header	Phosphor Bronze		Male Pin	29.5 µin	0.75 µm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Strain Relief Clips	0.079 "	2 mm
Harwin Inc. M80-7710622			Board to Board Cable	0.235 in	5.97 mm	2 mm	0.079 in	Gold	All	120 VDC	-55 C	125 °C	Circular	Black	6	Latch Lock	UL94 V-0	Solder	4.5 mm	0.177 in	Right Angle Through Hole	2.2 A	2	Header	Phosphor Bronze	Tin-Lead	Male Pin	29.5 µin	0.75 µm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Strain Relief Clips	0.079 "	2 mm	118.1 Áin	3 Ám	29.5 Áin	0.75 Ám
Harwin Inc. M80-7710422	118.1 µin	3 µm	Board to Board Cable	0.235 in	5.97 mm	2 mm	0.079 in	Gold	All	120 VDC	-55 C	125 °C	Circular	Black	4	Latch Lock	UL94 V-0	Solder	4.5 mm	0.177 in	Right Angle Through Hole	2.2 A	2	Header	Phosphor Bronze	Tin-Lead	Male Pin	29.5 µin	0.75 µm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Strain Relief Clips	0.079 "	2 mm
Harwin Inc. M80-7710842	118.1 µin	3 µm	Board to Board Cable	0.235 in	5.97 mm	2 mm	0.079 in	Gold	All	120 VDC	-55 C	125 °C	Circular	Black	8	Latch Lock	UL94 V-0	Solder	4.5 mm	0.177 in	Right Angle Through Hole	2.2 A	2	Header	Phosphor Bronze	Tin	Male Pin	29.5 µin	0.75 µm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Strain Relief Clips	0.079 "	2 mm
Harwin Inc. M80-7713422	118.1 µin	3 µm	Board to Board Cable	0.235 in	5.97 mm	2 mm	0.079 in	Gold	All	120 VDC	-55 C	125 °C	Circular	Black		Latch Lock	UL94 V-0	Solder	4.5 mm	0.177 in	Right Angle Through Hole	2.2 A	2	Header	Phosphor Bronze	Tin-Lead	Male Pin	29.5 µin	0.75 µm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Strain Relief Clips	0.079 "	2 mm					34
