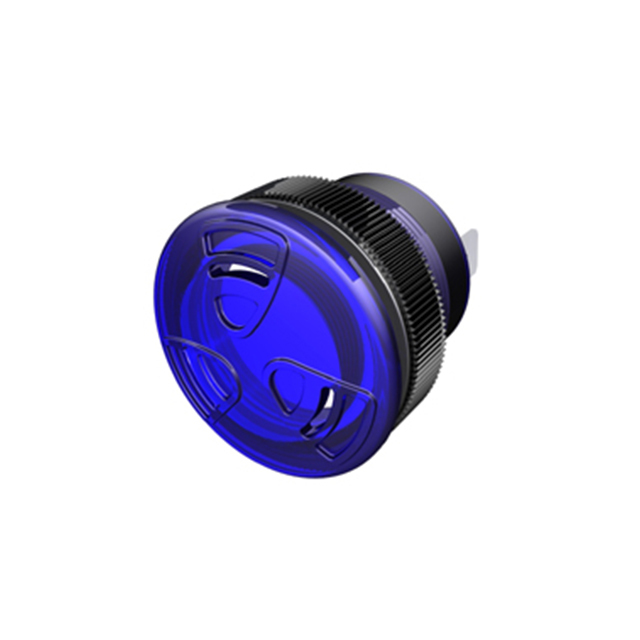

TUHW-88B Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 33.02MM PNL MNT
| Part | Operating Mode | Sound Pressure Level (SPL) | Approval Agency | Ingress Protection | Mounting Type | Frequency | Port Location | Input Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Driver Circuitry | Termination | Termination | Termination | Current - Supply [Max] | Current - Supply [Min] | Voltage Range [Max] | Voltage Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Slow Warble | 103 dB | UL UR | IP68 - Dust Tight Waterproof | Panel Mount | 3 kHz | Top | DC | 1.3 in | 33.02 mm | 29.97 mm | 1.18 in | Indicator Internally Driven | Quick Connect Tab | 0.25 " | 6.35 mm | 125 mA | 65 mA | 30 V | 9 V |
Floyd Bell Inc | Warble Fast | 103 dB | UL UR | IP68 - Dust Tight Waterproof | Panel Mount | 3 kHz | Top | DC | 1.3 in | 33.02 mm | 29.97 mm | 1.18 in | Indicator Internally Driven | Quick Connect Tab | 0.25 " | 6.35 mm | 125 mA | 65 mA | 30 V | 9 V |
