3134-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

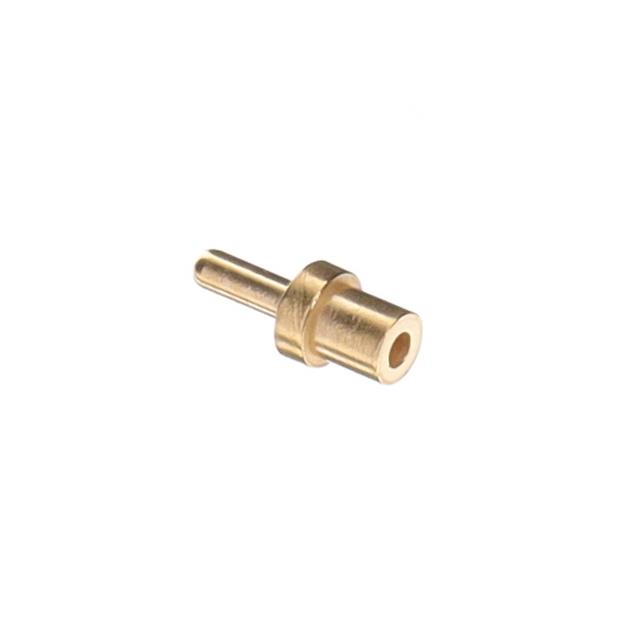

CONN PC PIN CIRC .025DIA TINLEAD
| Part | Length - Overall [x] | Length - Overall [x] | Termination | Insulation | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style | Contact Finish | Board Thickness | Board Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.151 in | 3.84 mm | Swage | Non-Insulated | Through Hole | 1.32 mm | 0.052 in | Brass Alloy | 0.051 " | 1.3 mm | PC Pin | 200 Áin | 5.08 Ám | 2.01 mm | 0.079 in | 1.57 mm | 0.062 in | Single End | Tin-Lead | 0.79 mm | 0.031 in | 0.64 mm | 0.025 in |
 Mill-Max Manufacturing Corp. | 0.151 in | 3.84 mm | Swage | Non-Insulated | Through Hole | 1.32 mm | 0.052 in | Brass Alloy | 0.051 " | 1.3 mm | PC Pin | 20 µin | 0.51 µm | 2.01 mm | 0.079 in | 1.57 mm | 0.062 in | Single End | Gold | 0.79 mm | 0.031 in | 0.64 mm | 0.025 in |
Mill-Max Manufacturing Corp. | 0.151 in | 3.84 mm | Swage | Non-Insulated | Through Hole | 1.32 mm | 0.052 in | Brass Alloy | 0.051 " | 1.3 mm | PC Pin | 10 Áin | 0.25 Ám | 2.01 mm | 0.079 in | 1.57 mm | 0.062 in | Single End | Gold | 0.79 mm | 0.031 in | 0.64 mm | 0.025 in |
