MTJG-8 Series
Manufacturer: Adam Tech
Beta
⌘K

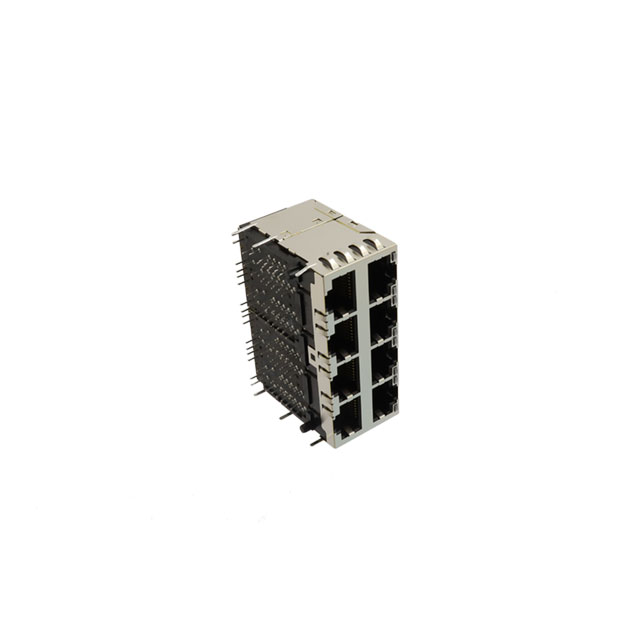

GANGED 8 POSITION MODULAR JACK,
| Part | Shield Material | Housing Material | Contact Finish Thickness | Height Above Board [z] | Height Above Board [z] | Number of Cores per Jack | Orientation | Features | Number of Ports | Number of Rows [custom] | Contact Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | LED Color | Mounting Type | Termination | Tab Direction | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Stainless Steel | Thermoplastic | Flash | 31 mm | 1.22 in | 9 | 90 ° | Board Guide Solder Retention | 8 | 2 | Phosphor Bronze | RJ45 with USB A Dual | 70 °C | 0 °C | EMI Finger Shielded | Green Yellow | Through Hole | Solder | Up and Down | Gold |
