857-048 Series
Manufacturer: EDAC Inc.
Beta
⌘K

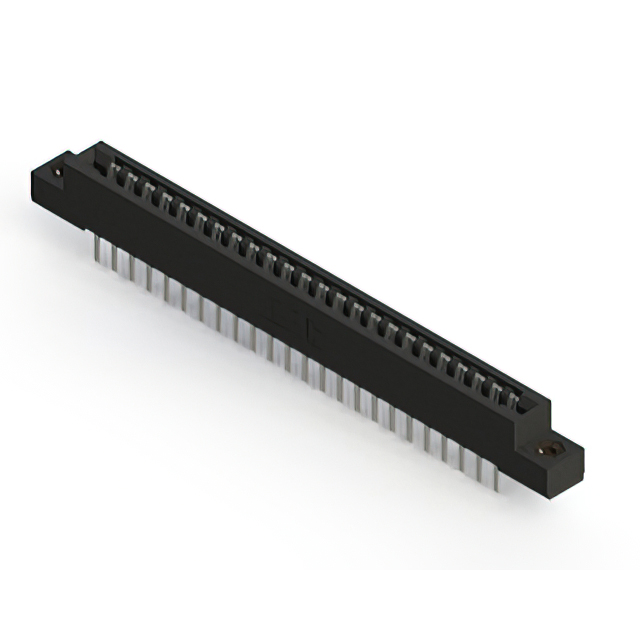

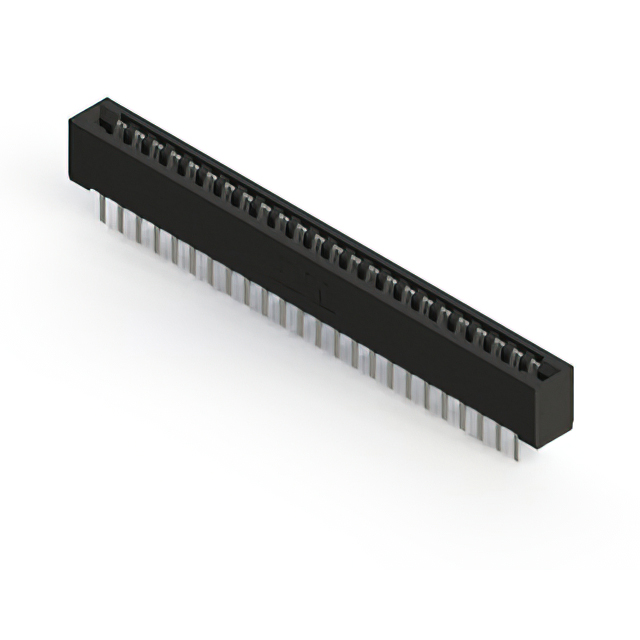

CONN EDGE DUAL FMALE 48POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Gender | Contact Finish | Contact Material | Number of Positions | Card Type | Read Out | Number of Rows [custom] | Termination | Number of Positions/Bay/Row | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Tin | Copper Alloy | 48 | Non Specified - Dual Edge | Single | 2 | Solder | 24 | ||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Tin | Copper Alloy | 48 | Non Specified - Dual Edge | Dual | 2 | Wire Wrap | 24 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Tin | Copper Alloy | 48 | Non Specified - Dual Edge | Dual | 2 | Wire Wrap | 24 | ||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Gold | Copper Alloy | 48 | Non Specified - Dual Edge | Dual | 2 | Solder Eyelet(s) | 24 | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Tin | Copper Alloy | 48 | Non Specified - Dual Edge | Dual | 2 | Solder | 24 | Flush Mount M3 Threaded Insert Top Opening | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Tin | Copper Alloy | 48 | Non Specified - Dual Edge | Single | 2 | Solder | 24 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Tin | Copper Alloy | 48 | Non Specified - Dual Edge | Dual | 2 | Solder | 24 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Card Extender | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Tin | Copper Alloy | 48 | Non Specified - Dual Edge | Dual | 2 | Solder | 24 | ||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Tin | Copper Alloy | 48 | Non Specified - Dual Edge | Dual | 2 | Solder | 24 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Card Extender | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Black | Female | Tin | Copper Alloy | 48 | Non Specified - Dual Edge | Dual | 2 | Solder | 24 | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender |
