IS49RL18320 Series

Manufacturer: ISSI, Integrated Silicon Solution Inc

Catalog

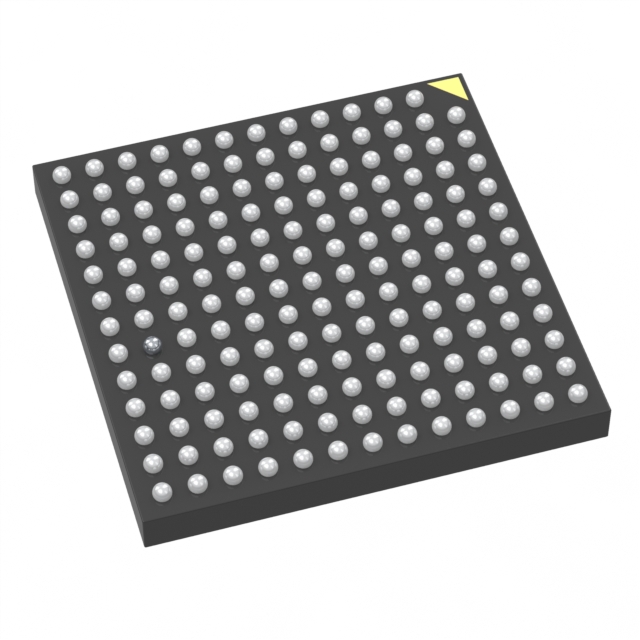

IC DRAM 576MBIT PAR 168FCBGA

Part	Memory Format	Memory Organization	Voltage - Supply [Min]	Voltage - Supply [Max]	Access Time	Memory Type	Memory Interface	Technology	Clock Frequency	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Memory Size
ISSI, Integrated Silicon Solution Inc IS49RL18320A-107EBL	DRAM	32 M	1.28 V	1.42 V	7.5 ns	Volatile	Parallel	RLDRAM 3	933 MHz	168-LBGA	Surface Mount	95 °C	0 °C	168-FBGA	13.5	13.5	576 Mbit
ISSI, Integrated Silicon Solution Inc IS49RL18320-093BL	DRAM	32 M	1.28 V	1.42 V	10 ns	Volatile	Parallel	DRAM	1066 MHz	168-LBGA	Surface Mount	70 °C	0 °C	168-FBGA	13.5	13.5	576 Mbit
ISSI, Integrated Silicon Solution Inc IS49RL18320-107EBLI	DRAM	32 M	1.28 V	1.42 V	8 ns	Volatile	Parallel	DRAM	933 MHz	168-LBGA	Surface Mount	85 C	-40 ¯C	168-FBGA	13.5	13.5	576 Mbit
ISSI, Integrated Silicon Solution Inc IS49RL18320-107BLI	DRAM	32 M	1.28 V	1.42 V	10 ns	Volatile	Parallel	DRAM	933 MHz	168-LBGA	Surface Mount	85 C	-40 ¯C	168-FBGA	13.5	13.5	576 Mbit
ISSI, Integrated Silicon Solution Inc IS49RL18320-125EBLI	DRAM	32 M	1.28 V	1.42 V	10 ns	Volatile	Parallel	DRAM	800 MHz	168-LBGA	Surface Mount	85 C	-40 ¯C	168-FBGA	13.5	13.5	576 Mbit
ISSI, Integrated Silicon Solution Inc IS49RL18320-093BLI	DRAM	32 M	1.28 V	1.42 V	10 ns	Volatile	Parallel	DRAM	1066 MHz	168-LBGA	Surface Mount	85 C	-40 ¯C	168-FBGA	13.5	13.5	576 Mbit
ISSI, Integrated Silicon Solution Inc IS49RL18320-093EBLI	DRAM	32 M	1.28 V	1.42 V	8 ns	Volatile	Parallel	DRAM	1066 MHz	168-LBGA	Surface Mount	85 C	-40 ¯C	168-FBGA	13.5	13.5	576 Mbit
ISSI, Integrated Silicon Solution Inc IS49RL18320-125FBL	DRAM	32 M	1.28 V	1.42 V	8 ns	Volatile	Parallel	RLDRAM 3	800 MHz	168-LBGA	Surface Mount	95 °C	0 °C	168-FBGA	13.5	13.5	576 Mbit
ISSI, Integrated Silicon Solution Inc IS49RL18320A-093EBLI	DRAM	32 M	1.28 V	1.42 V	7.5 ns	Volatile	Parallel	RLDRAM 3	1066 MHz	168-LBGA	Surface Mount	95 °C	-40 °C	168-FBGA	13.5	13.5	576 Mbit
ISSI, Integrated Silicon Solution Inc IS49RL18320-125BLI	DRAM	32 M	1.28 V	1.42 V	12 ns	Volatile	Parallel	DRAM	800 MHz	168-LBGA	Surface Mount	85 C	-40 ¯C	168-FBGA	13.5	13.5	576 Mbit
