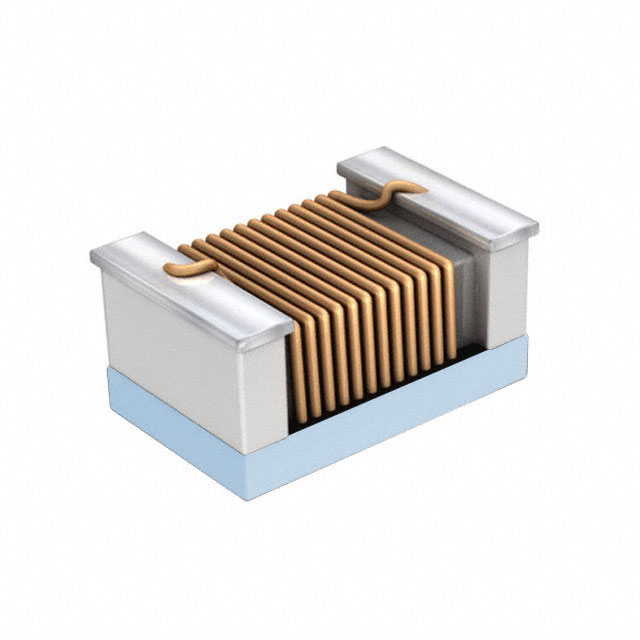

0402HS Series

Manufacturer: Delta Electronics/Components

Catalog

FIXED IND 6.8NH 680MA 83MOHM SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Tolerance	Material - Core	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Mounting Type	Type	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)	Supplier Device Package	Inductance	Q @ Freq [custom]	Q @ Freq	Q @ Freq [custom]	Frequency - Self Resonant [custom]
Delta Electronics/Components 0402HS-6N8EJTS	125 °C	-40 C	250 MHz	5 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	0.68 A	Surface Mount	Drum Core Wirewound	4.8 GHz	250 MHz	20	83 mOhm	0402	6.8 nH
Delta Electronics/Components 0402HS-300EGTS	125 °C	-40 C	250 MHz	2 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	400 mA	Surface Mount	Drum Core Wirewound	2.35 GHz		25	350 mOhm	0402	30 nH	250 MHz
Delta Electronics/Components 0402HS-5N6EGTS	125 °C	-40 C	250 MHz	2 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	760 mA	Surface Mount	Drum Core Wirewound	4.8 GHz	250 MHz	20	83 mOhm	0402	5.6 nH
Delta Electronics/Components 0402HS-390EKTS	125 °C	-40 C	250 MHz	10 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	0.2 A	Surface Mount	Drum Core Wirewound	2.1 GHz		25	550 mOhm	0402	39 nH	250 MHz
Delta Electronics/Components 0402HS-560EGTS	125 °C	-40 C	250 MHz	2 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	100 mA	Surface Mount	Drum Core Wirewound	1.76 GHz		25	970 mOhm	0402	56 nH	250 MHz
Delta Electronics/Components 0402HS-2N0EJTS	125 °C	-40 C	250 MHz	5 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	1.04 A	Surface Mount	Drum Core Wirewound	11.1 GHz			70 mOhm	0402	2 nH		16 250 MHz
Delta Electronics/Components 0402HS-110EJTS	125 °C	-40 C	250 MHz	5 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	0.64 A	Surface Mount	Drum Core Wirewound	3.68 GHz			120 mOhm	0402	11 nH	250 MHz		24
Delta Electronics/Components 0402HS-430EKTS	125 °C	-40 C	250 MHz	10 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	100 mA	Surface Mount	Drum Core Wirewound	2.03 GHz		25	810 mOhm	0402	43 nH	250 MHz
Delta Electronics/Components 0402HS-3N6EJTS	125 °C	-40 C	250 MHz	5 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	0.84 A	Surface Mount	Drum Core Wirewound	6.8 GHz			66 mOhm	0402	3.6 nH		19 250 MHz
Delta Electronics/Components 0402HS-240EGTS	125 °C	-40 C	250 MHz	2 %	Ceramic	Unshielded	1.27 mm	0.03 "	0.05 "	0.76 mm	0402 (1005 Metric)	0.6 mm	0.024 in	400 mA	Surface Mount	Drum Core Wirewound			25	300 mOhm	0402	24 nH	250 MHz			2.7 GHz
