1969540 Series

Catalog

(3-1969540-8) HOUSING, PLUG, DUAL ROW, EP2.5

Part	Fastening Type	Mounting Type	Number of Positions	Color	Note	Contact Termination	Insulation Material	Number of Rows	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type

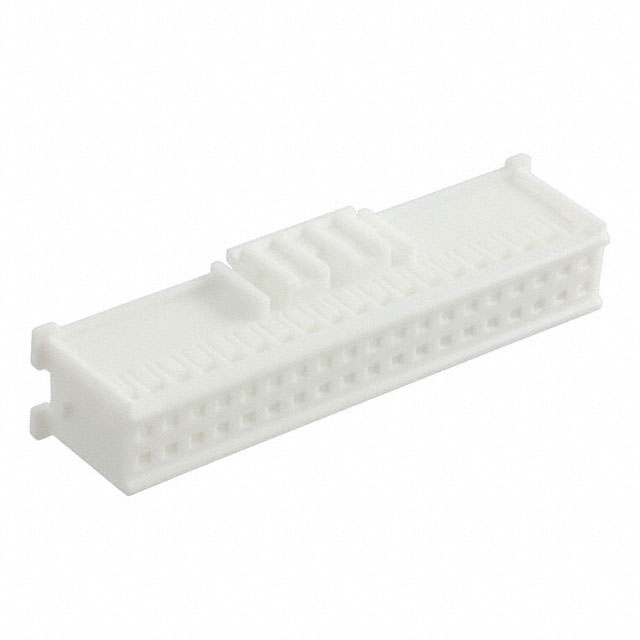

TE Connectivity Raychem Cable Protection 3-1969540-8	Latch Lock	Free Hanging (In-Line)	38	White	Contacts Not Included	Crimp	Nylon Polyamide (PA)	2	0.098 in	2.5 mm	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C	Receptacle

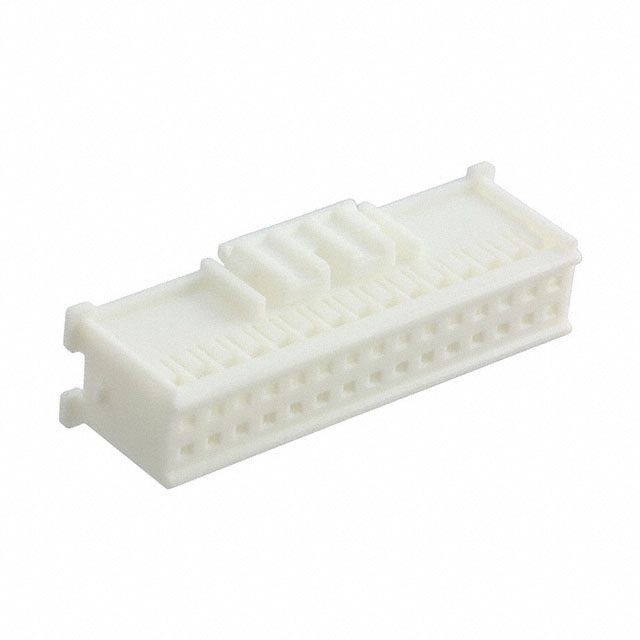

TE Connectivity Raychem Cable Protection 3-1969540-0	Latch Lock	Free Hanging (In-Line)	30	White	Contacts Not Included	Crimp	Nylon Polyamide (PA)	2	0.098 in	2.5 mm	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C	Receptacle

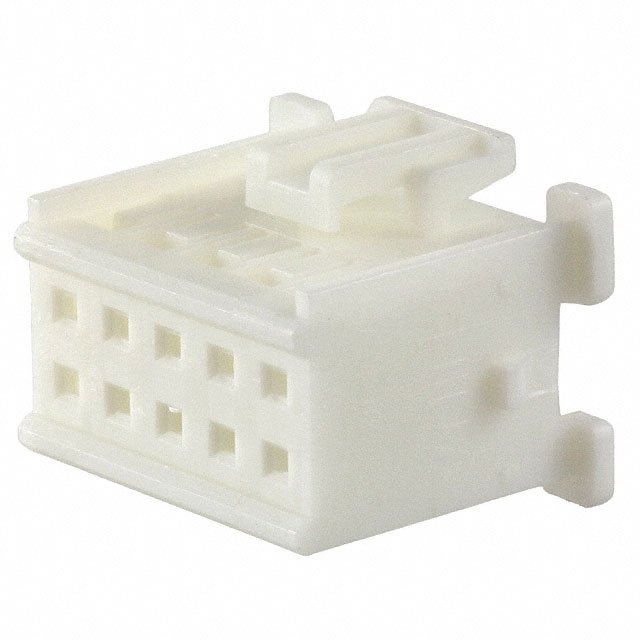

TE Connectivity Raychem Cable Protection 1-1969540-0	Latch Lock	Free Hanging (In-Line)	10	White	Contacts Not Included	Crimp	Nylon Polyamide (PA)	2	0.098 in	2.5 mm	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C	Receptacle

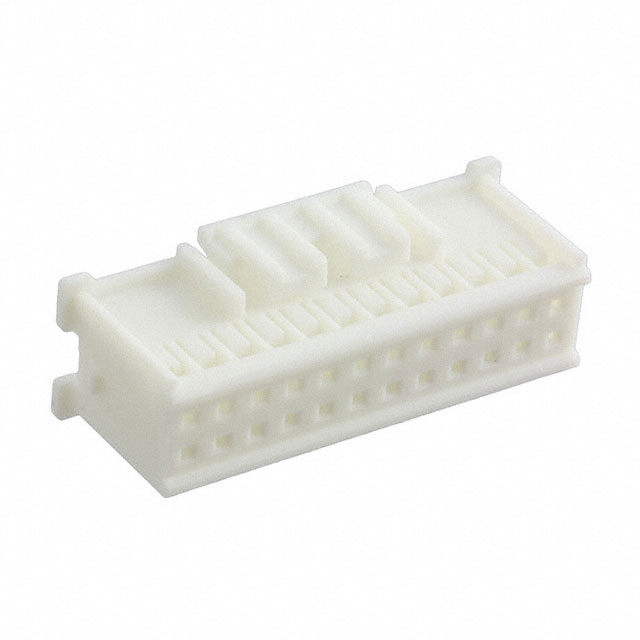

TE Connectivity Raychem Cable Protection 2-1969540-4	Latch Lock	Free Hanging (In-Line)	24	White	Contacts Not Included	Crimp	Nylon Polyamide (PA)	2	0.098 in	2.5 mm	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C	Receptacle

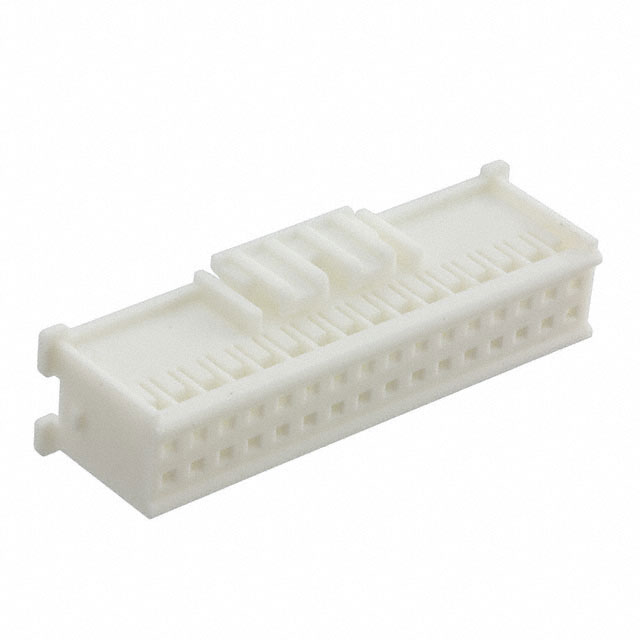

TE Connectivity Raychem Cable Protection 3-1969540-2	Latch Lock	Free Hanging (In-Line)		White	Contacts Not Included	Crimp	Nylon Polyamide (PA)	2	0.098 in	2.5 mm	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C	Receptacle

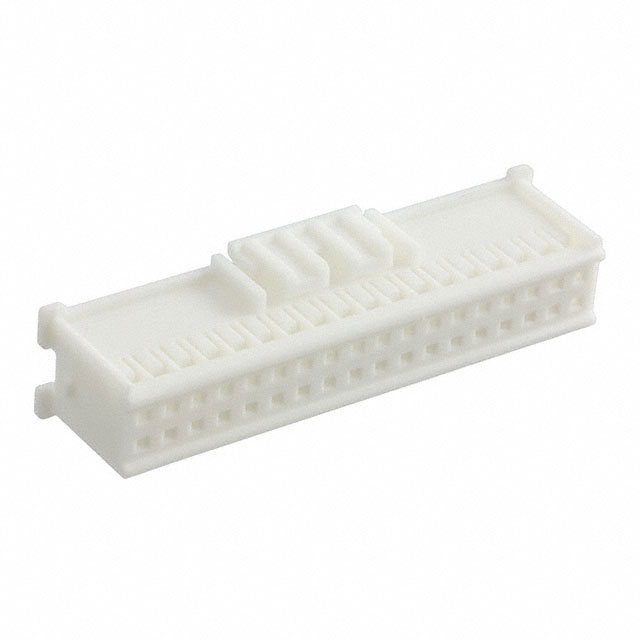

TE Connectivity Raychem Cable Protection 3-1969540-6	Latch Lock	Free Hanging (In-Line)	36	White	Contacts Not Included	Crimp	Nylon Polyamide (PA)	2	0.098 in	2.5 mm	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C	Receptacle
