325-027 Series
Manufacturer: EDAC Inc.
Beta
⌘K

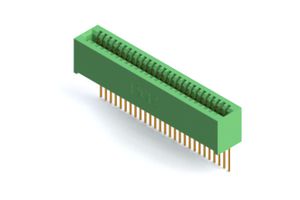

CONN EDGE SINGLE FML 27POS 0.100
| Part | Material - Insulation | Termination Rows | Termination | Flange Feature | Color | Number of Positions | Contact Finish | Card Type | Number of Positions/Bay/Row | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Read Out | Contact Type | Contact Material | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | Green | 27 | Gold | Non Specified - Single Edge | 27 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Through Hole | -65 ░C | 125 °C | 1 | Single | Cantilever | Copper Alloy | Female |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder Eyelet(s) | Green | 27 | Gold | Non Specified - Single Edge | 27 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Through Hole | -65 ░C | 125 °C | 1 | Single | Cantilever | Copper Alloy | Female | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Wire Wrap | Green | 27 | Gold | Non Specified - Single Edge | 27 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Through Hole | -65 ░C | 125 °C | 1 | Single | Cantilever | Copper Alloy | Female |
