M2032ES Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 3PDT 6A 125V
| Part | Electrical Life | Actuator Material | Mounting Type | Features | Voltage Rating - AC | Bushing Thread | Illumination | Termination Style | Circuit | Switch Function | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Length [x] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Panel Mount | Epoxy Sealed Terminals | 125 V | 1/4-40 | Non-Illuminated | Solder Lug | 3PDT | On-On | Flatted | 85 °C | -30 ░C | 6.5 mm | 4 A 6 A | 11.4 mm | 30 V |

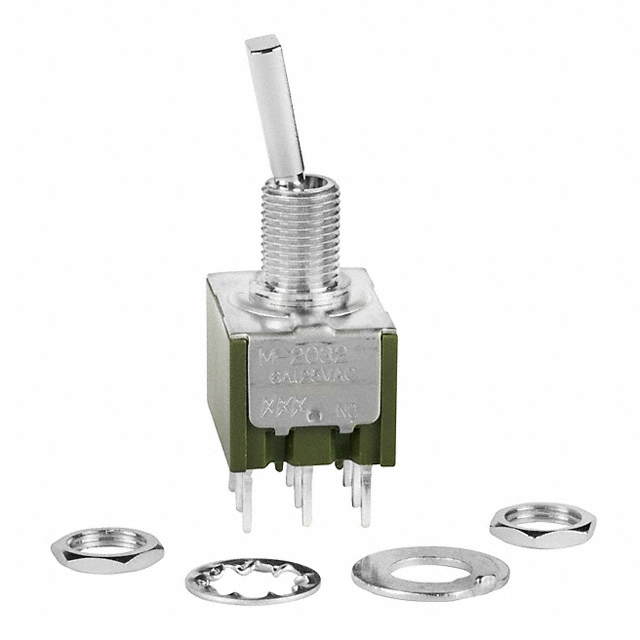

 NKK Switches | 25000 Steps | Brass Chrome Plated | Panel Mount | Epoxy Sealed Terminals | 125 V | 1/4-40 | Non-Illuminated | PC Pin | 3PDT | On-On | Flatted | 85 °C | -30 ░C | 6.5 mm | 4 A 6 A | 11.4 mm | 30 V |

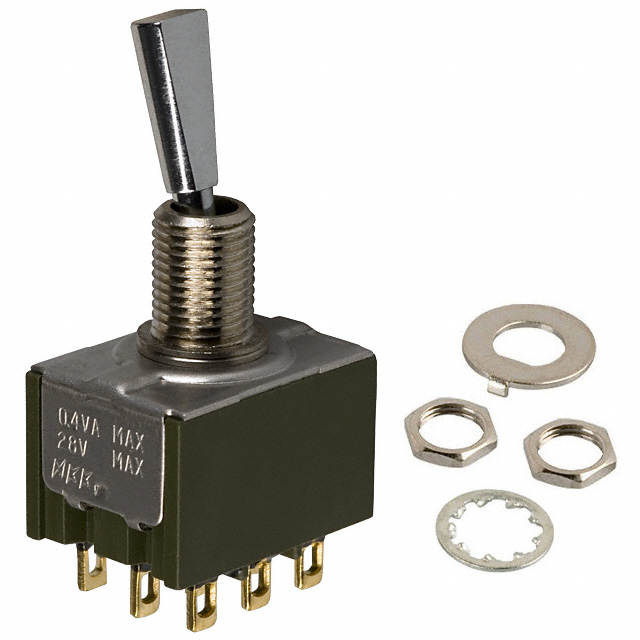

 NKK Switches | 50000 Cycles | Brass Chrome Plated | Panel Mount | Epoxy Sealed Terminals | 28 V | 1/4-40 | Non-Illuminated | Solder Lug | 3PDT | On-On | Flatted | 85 °C | -30 ░C | 6.5 mm | 0.4 VA | 11.4 mm | 28 V |
