LD25P24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

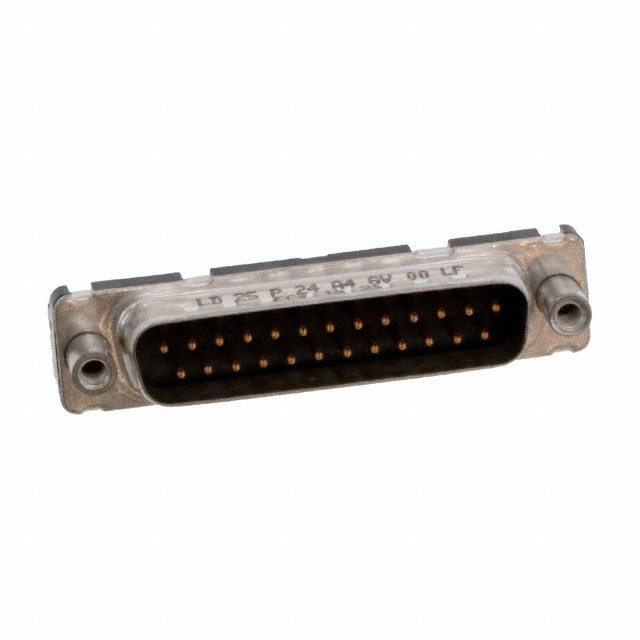

CONN D-SUB PLUG 25POS VERT SLDR
| Part | Contact Material | Voltage Rating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Type | Number of Positions | Connector Type | Flange Feature | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Contact Finish Thickness | Connector Style | Number of Rows [custom] | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | 250 V | Black | -55 C | 105 ░C | Thermoplastic | Signal | 25 | Plug Male Pins | 4-40 Mating Side Female Screwlock | 5 A | Through Hole | UL94 V-0 | Flash | D-Sub | 2 | Steel Tin-Nickel Plated | B DB | 3 | Gold | Solder | Board Lock Grounding Indents |
