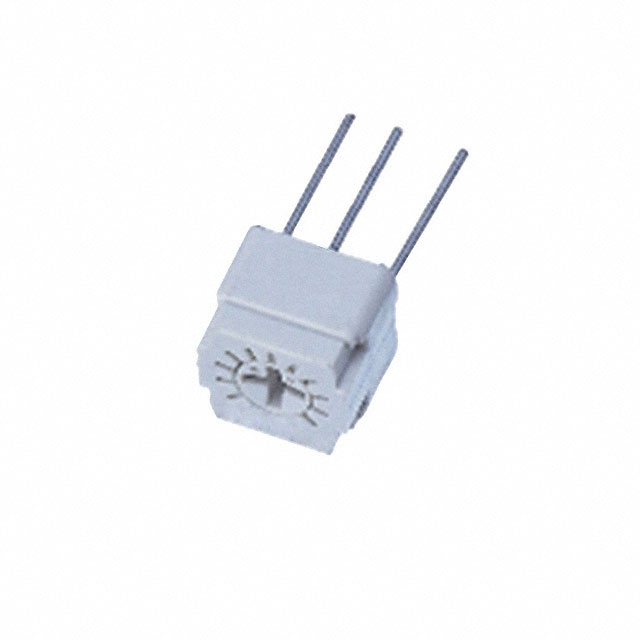

FT63EV Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 500K OHM 0.5W PC PIN TOP

Part	Termination Style	Resistive Material	Temperature Coefficient	Mounting Type	Number of Turns	Adjustment Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Power (Watts)	Tolerance	Resistance
Nidec Components Corporation FT-63EV504	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %
Nidec Components Corporation FT-63EV500	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %	50 Ohms
Nidec Components Corporation FT-63EV202	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %	2 kOhms
Nidec Components Corporation FT-63EV102	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %	1000 Ohms
Nidec Components Corporation FT-63EV103	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %	10000 Ohms
Nidec Components Corporation FT-63EV205	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %	2 MOhms
Nidec Components Corporation FT-63EV501	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %	500 Ohms
Nidec Components Corporation FT-63EV302	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %	3 kOhms
Nidec Components Corporation FT-63EV105	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %	1 MOhms
Nidec Components Corporation FT-63EV503	PC Pins	Cermet	100 ppm/°C	Through Hole	1	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	0.5 W	0.5 W	10 %	50 kOhms
